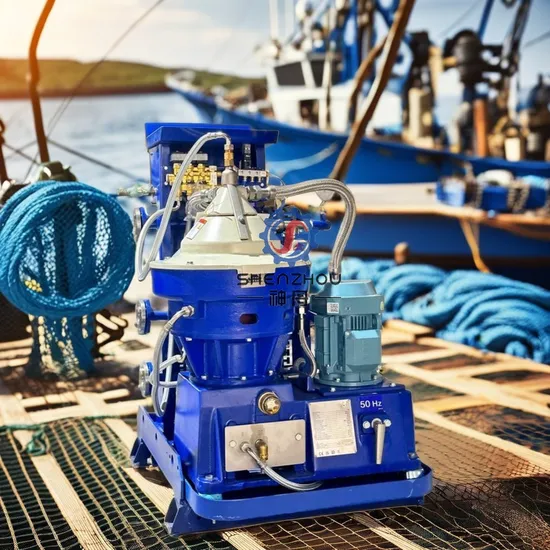

High Rotating Speed Disc Oil Separator Centrifuge

Product Description

High Rotating Speed Disc Oil Separator With Large Regulating Sphere Disc Oil Separator application Fields

1. Soybean, Rapeseed, sunflower seed, cotton seed
2. Palm oil, Coconut oil, linseed oil
3. Peanut , Corn Germ , Rice bran oil
4. Special oil, such as sesame oil, orange peel oil, safflower oil and so on
Core capacity
1. Degumming
2. Deacidification
3. Dewaxing
4. Fractionation
5. Water washing
6. Squeezed oil clarification
7. Lecithin deoiling
8. Frying oil refining

Disc Oil Separator advantage:

1, High rotating speed
2, Operating stability
3, Completely sealed up of the inlet and outlet system
Details
Application
It is widely used in chemical, pharmaceutical, oil, foodstuff, milk industry, daily industry and defense industry such as:
1. Food stuff industry: For animal protein extraction and separation, as well as in meat processing for refining animal lipid or in concentrating and separating aquatic products of fish oil, in clarifying and degreasing milk, for the clarification of beer and malt, sparkling wine, fruit juice and drinks and so on.
2. Chemical industry: Mainly used in separating industrial chemicals, paint and coatings. Also it could be used in the clarification and purification of wastewater from light, textile, chemical fiber industry as well as analogues of greater density solid-phase. Also it is used for concentrating and clarifying of natural rubber, it separates rubber milk into concentrated latex and clear pastern. At the same time it removes the solid impurities in serum.
3. Pharmaceutical Industry: Mainly used in separating biopharmaceuticals, pharmaceutical medicine, vaccines, mycelium, glucose, insulin, vitamins, antibiotics, pigments, proteins, spices and so on.
4. Oil industry: It can be used vegetable oil, animal fat, fish oil, soap oil, biodiesel and other lipid-foot, swill oil as raw material, through new centrifugal separation process of trans- esterification and access .
5. Other industry: It mainly used to remove the water and mechanical impurities contained in equipment fuel and lubricants in boating mainframe, diesel power station as well as other types of mineral oil, in order to reduce diesel engine or other mechanical wear and extend the useful life of the mechanical. Also applies to separate and clarify similar materials of waste oil in other petrochemical industries, such as black oil, delayed coking oil, washing oil and recycle oil and so on.
Specification

Model	Treatment capacity (L/H)	Inlet Pressure (Mpa)	Outlet pressure (Mpa)	Motor power (Kw)	Weight (Kg)	Outline dimension (mm)
DHN360	2000-5000	0.05	0.1-0.35	7.5	1200	1530*1150*1500
DHN470	5000-10000	0.05	0.1-0.4	15	1600	1800*1200*1750
DHN550	10000-20000	0.05	0.1-0.4	22	2300	1950*1550*1960
DHN616	25000-35000	0.1	0.3	37	3000	2185*1728*2082

Company Profile
Packaging & Shipping
Our service The technical and after-sale services are listed as follows: 1. Provide free technical training, guidance and information of accessories. 2. Our technical staff could instruct our customers on the installation of connector and accessories , and deal with technical and quality issues. 3. Our products with 1 years' warranty and life maintenance. 4. Our company will provide technical services by phone, fax, e-mail, etc., please refer to the contact details. 5. Our company will implement the contract strictly; deliver the products to location specified by our customers for free in accordance with the mode of transportation. Contact person: Cathy Once receive the calling of complaints, we will respond to it within 12 hours at working time and provide solution within 48 hours. If necessary, our company will send technical staff there and provide on-site solution.

---
