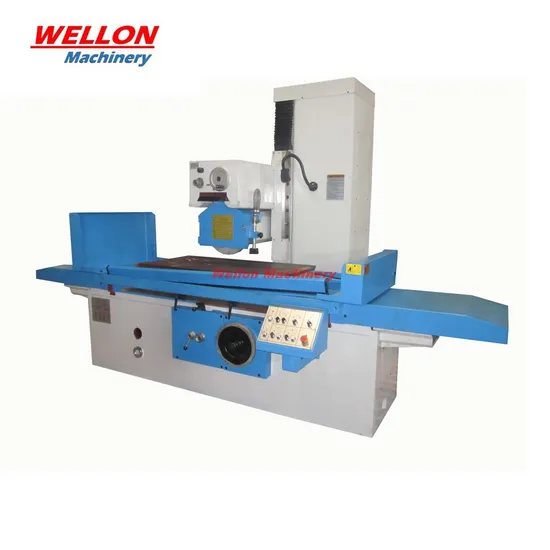

Hydraulic Surface Grinding Machine (M7163X1250 / M7163X1600 / M7163X2200) Surface Grinder

Product Description

Performence Features:
This series of surface grinder is most suitable for the grinding steel, casting and non-ferrous parts of machine manufacturing industry.
The accuracy of the machine has reached the National Standard for horizontal spindle & rectangular worktable surface grinder.
The longitudinal movement of the worktable is driven by vane pump, which makes the movement smooth and low noise.
The bearings of the wheel head spindle adopt bimetal shell bearing, which can afford heavy impact and make the machine able to carry out heavy load grinding.
The cross movement of the wheel head can be driven by hand or by hydraulic oil automatically. It is easy to operate. The vertical feed of the wheel head is driven by hand. It is also assembled with rapid elevating motor, which can reduce the intention of work labor as well as enhance the work efficiency.
The machine moves smoothly and has reliable performance, low noise and stable accuracy. It is easy to operate and deeply welcomed by the customers.
Technical parameter:

Model		Unit	M7163x1250	M7163x1600	M7163x2200
Worktable size		mm	630x1250	630x1600	630x2200
Max machining dimension		mm	630x1250	630x1600	630x2200
Distance from spindle center to table		mm	700	700	700
Longitudinal moving speed of worktable		m/min	5-25	5-25	5-25
T-slot number		mm	3x22	3x22	3x22
Wheel head Cross moving	Continuous feed speed	m/min	0.5-4.5	0.5-4.5	0.5-4.5
	Intermittent feed speed	mm/t	3-30	3-30	3-30
	Hand wheel feed	mm/gra	0.01	0.01	0.01
Vertical Moving of wheel head	Rapid speed	mm/min	400	400	400
	Hand wheel feed	mm/gra	0.005	0.005	0.01
Wheel Head motor	Power	Kw	7.5	5.5	7.5
	Rotation speed	rpm	1440	1440	1440
Total power		kw	13.75	15.75	15.75
Max loading capacity of worktable		kg	1010	1290	1780
Chuck size		mm	630x1000x1	630x800x2	630x1000x2
Wheel size		mm	400x40x203	400x40x203	400x40x203
Package dimension		cm	410x228x252	520x228x252	680x228x252
Machine Weight		t	6.86	7.85	9.65

Standard Accessories:
Wheel Flange ,Balancing Arbor ,Wheel Exactor ,Coolant Tank ,Working Lamp
Tool Box and Tools ,Wheel dresser Stand not include diamond pen
Standard Grinding Wheel, Leveling Wedge and Bolt
Built in Electro Magnetic Chuck Controller
Optional Accessories:
Standard Electro Magnetic Chuck
Wheel Flange
Balance Stand
Coolant Tank with magnetic separator
Coolant tank with paper filter
Coolant with magnetic separator and paper filter
Parallel wheel dresser

---
