Advanced Technology Sand Making Machine for Sand Producing

Product Description

Product Brief Introduction

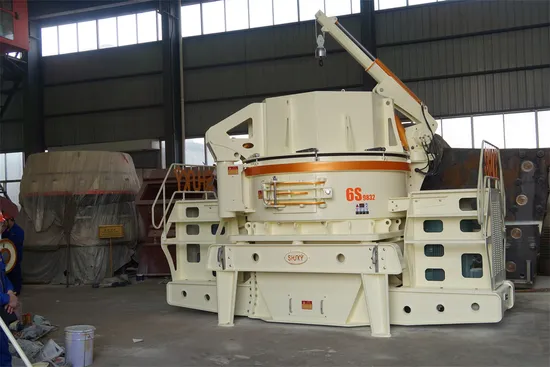

6S new sand making machine is a crushing equipment with lower unit cost, higher crushing efficiency and intelligent operation control developed by our company based on the original high-performance VSI series and combined with the actual operation of the equipment under different working conditions and the feedback suggestions of the operator. By improving feeding mode, optimizing crushing chamber type, adopting new rotor design, adding lifting device and so on, the machine can significantly reduce the material flow resistance, improve the material passing capacity, reduce the wear rate of wearing parts, improve the energy utilization rate, prolong the maintenance cycle, shorten the maintenance time consumption. Now it has become a representative high performance crushing sand equipment in sand machine.

Large capacity, high yield.
Feeding mode is improved and easier to adjust; higher spindle speed and greater crushing chamber increased the machine's capacity in actual production. Lower consumption of wearing parts.
The optimized crushing chamber makes the best impact angle and reduces friction of wear parts, which directly reduce the cost. Excellent particle shape
Self-strike crushing principle enables the machine to produce the best particle-shape aggregates. It is easy to maintain because of hydraulic device.
Hydraulic cover lifting device makes it's more convenient to inspect and maintain the crushing cavity's inner parts. Hydraulic lifting device and motor seat adjustment device can significantly reduce downtime. Automatic detection, it's being safe and reliable.
The alarm device will give signals if the machine is dysfunctional, then the equipment stop to work quickly to protect the sand making machine.
Working PrincipleMaterials are constantly conveyed to the stuff distributing plate of sand making machine and piled up. When crammed the chamber, the materials naturally fall into the hopper. After getting into the rotating impeller, they are accelerated by the high speed rotating impeller, and then shot through the tunnels around the impeller which can be 10 times of gravity acceleration. These materials in high speed crash with those in free falling (stone on stone), and then impact the plate that fixed on the whirlpool cavity (stone on iron). They will be rebounded and repeat the process again, thus the materials are constantly crushed. After impacted for several times in the whirlpool cavity, the crushed materials will be excluded through the bottom discharging hole.

Technical Specifications

Model			6S-9832	6S-1245
Capacity(T/H)	Center and ring feeding		450-520	650-800
	Center feeding		225-260	325-400
Max. feeding length(mm)	Soft material		<50	<50
	Hard material		<45	<45
Rotation speed(r/min)			1360-1510	1100-1310
Power of two motors(kw)			160×2	220×2
Dimension(mm)			4750×2547×2850	5200×2830×3350
Power source			380V 50Hz
Monitoring range of vibration sensor			0.1-20mm/s 0.1-20mm/ continuous and adjustable
Hydraulic lubrication station		Motor power(kw)	2×0.31
		Safety	Complementary double pumps ensure oil supply; no oil flow; no-oil-hydraulic-automatic-protection; water cooling; heating boot of motor in winter
		Dimension(mm)	820×520×1270
		Power of tank heater(kw)	2

Working Site

---
