Sc APC/Upc Fiber Optic Fast Connector

Product Description

Product Description

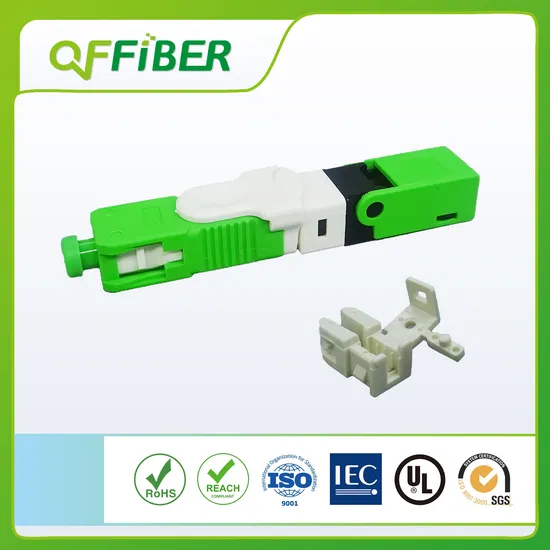

SC APC/UPC Fiber Optic Fast Connector
DESCRIPTION
SC/APC connector adopts snap-on coupling with 1.25mm ferrule to realize high density installation.It is made as per modularized jack door lock mechanism. Compliant with ANSI, EIA/TIA, IEC, and telcordia standards.
FEATURES
* Price-Competitive Singlemode SC UPC APC fiber optic fast installation connector
* Low Insertion Loss
* Factory-terminated and Tested
* Fiber Options: G.652
* Connector Options: SC
* Polishing Options: PC/UPC/APC
* Feature Connector with Ceramic Ferrules
APPLICATIONS
* Access Network
* Telecom/CATV Systems
* FTTx
TECHNICAL SPECIFICATION

Connector Type	SC/UPC,SC/APC
Operating Wavelength	1260nm~1650nm
Insertion Loss	≤0.20dB, max 0.3dB
Return Loss	PC≥45dB,UPC≥50dB,APC≥60dB
Exchangeability	≤0.20dB
Plug times	≥1000
Storage Temperature	-40~+85ºC
Operating Temperature	-40~+85ºC
