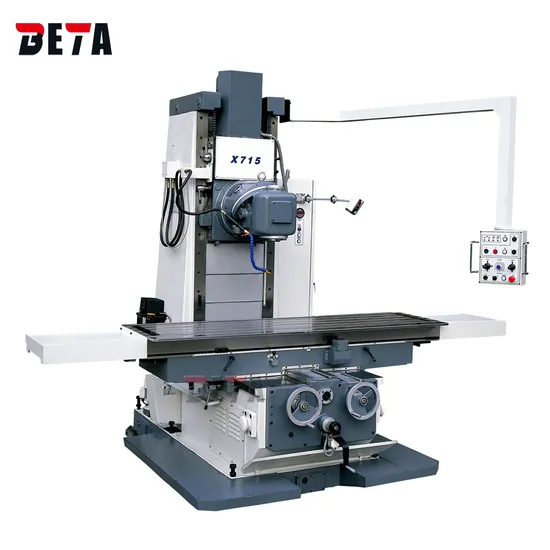

High Quality X715 Universal Variable Speed Bed Type Milling Machine

Product Description

High Quality X715 Universal Variable Speed Bed Type Milling Machine
Standard accessories:
Quartz lamp,
cooling,
emergency stop,
CE standard electrical parts,
three axis automatic feed
Optional accessories:
3-axis SINO digital display, Flat pliers 200mm,
X,Y axis change to ball screw,
Universal dividing head F11160A
Rotary table TS400A
Spindle protection
LED light

Model	Unit	X715
Table size	mm	2100 x 500
Spindle taper	-	ISO 50
Spindle speed	rpm	(12) 40 - 1600
Travel longitudinal (x)	mm	1500
Trave cross (y)	mm	700
Trave vertical (z)	mm	700
Distance spindle to column	mm	610
Spindle head tilting range	degree	360°
Distance spindle to table	mm	0 - 700
Feeding speeds X-axis (stepless)	mm/min	20 - 1800
Feeding speeds Y-axis (stepless)	mm/min	20 - 1800
Feeding speeds Z-axis (stepless)	mm/min	10 - 900
Rapid feed X/Y-axis	mm/min	3500
Rapid feed Z-axis	mm/min	1750
Feeding motor power	kw	2
Coolant motor power	kw	0.5
Main motor power	kw	7.5
Machine dimensions (W x D x H)	mm	3300x2380x2750
Weight approx.	kg	7300

TENGZHOU BETA CO.,LTD. is a highly reputed professional Machine Tool manufacturer and exporter in CHINA. We focus on complete seals solution include seal making CNC machine, seal processing software, seal materials and cutting tools, the annual output quantity up to more than 1000 units.
Having focused on international market. We have placed the priority on both machines' quality and service. All machines will thoroughly follow every stage during manufacturing, assembling, final testing, packing and shipping, we promise that every provided machine will be strictly tested and be ready to operate before delivery.

---
