US$41,000.00
|
39,000 Sets
(MOQ)
|
Basic Info.
Processing Accessory
Centre CNC Lathe
Guide Rail
Horizontal Guide Rail
Automatic Grade
Automatic
Certification
CE, ISO 9001
Max. Machineable Bar Dia.
25mm
Max. Face Drilling Dia.
10mm
Max. Face Tapping Dia.
M8
Main Spindle Max Speed
8000rpm
Main Spindle Index
C Axes(Continuation)
Back Spindle Max Speed
8000rpm
Back Spindle Index
C Axes(Continuation)
Radial Type Live Tool Max Speed
5000rpm
Rapid Moving Speed(X1/Y1/Z1/X2/Z2)
20/24/24/24/24
Repeat Popsitioning Accuracy
0.003
Transport Package
Plywood Case
Specification
2300*1300*1750
Production Capacity
480 Unit/Year
Packaging & Delivery
Package Size
250.00cm * 320.00cm * 250.00cm
Package Gross Weight
250.000kg
Product Description

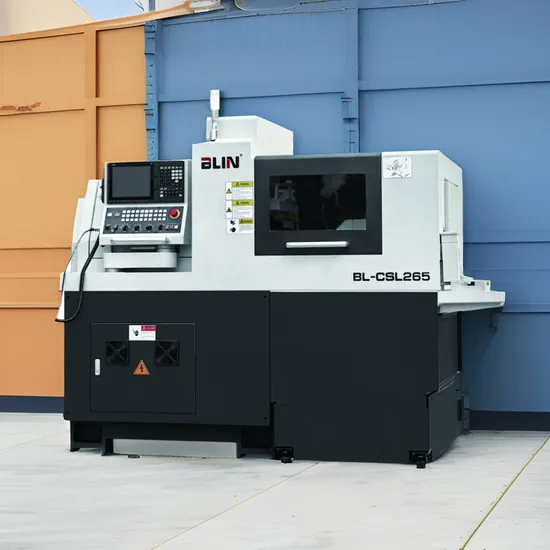

Double spindle Swiss Automatic machine lathe
- Dual spindle,total 5 axes
- Adopt TAIWAN technology,most parts adopt GERMANY/JAPAN/TAIWAN brand
- Adopt meehanite resin sand cast iron, after aging treatment, small distortion, good heat stability and high rigidity
-Adopt high precision built-in electro-spindle,NSK super high precise angle contact ball bearing, achieve spindle's high rigidity
and good precision retention,spindle flop≤2μm
- Adopt JAPAN THK brand high precision ball screw and linear guideway
- Adopt gang type tool, can achieve turning/milling/drilling etc combined machining by side-mounted live tool and C axes
- After mount automatic bar feeder, can realize automatic machining
- Suitable for complex, small-sized,precise,slender axles workpiece machining
Details:
| Item | Unit | BL-CSL205 | BL-CSL265 |
| Max. machineable bar dia. | mm | Φ20 | Φ25 |
| Main spindle bore | mm | Φ25 | Φ27 |
| Max. machineable length | Fixed guide bushing | mm | 200 |
| Rotary guide bushing | mm | 180(one time feed) |
| Guide bushless | mm | 50 |
| Max. face drilling dia. | mm | Φ10 |
| Max. face tapping dia. | mm | M8 |
| Main spindle max speed | rpm | 8000 |
| Main spindle motor | kw | 4.2 |
| Main spindle index | / | C axes(continuation) |
| Back spindle max speed | rpm | 8000 |
| Back spindle motor | kw | 3.1 |
| Back spindle index | / | C axes(continuation) |
| Radial type live tool max speed | rpm | 5000 |
| Rapid moving speed(X1/Y1/Z1/X2/Z2) | m/min | 20/24/24/24/24 |
| Repeat positioning accuracy | mm | ≤0.003 |
| O.D. tool | mm | 6 position 12*12 |
| Main spindle side axial drilling tool(fixed type) | mm | 4 position ER16 |
| Main spindle side radial type live tool | mm | 2 position ER11+2 position ER16 |
| Back spindle side back drilling tool(fixed type) | mm | 4 position ER16 |
| Coolant pump | kw | 0.46 |
| Overall size | mm | 2300×1300×1750 |
| N.W. | kg | 2500 | 2600 |
Main parts list:
| Item | Brand |
| CNC controller | TAIWAN-SYNTEC |
| Servo electro-spindle | TAIWAN |
| Servo motor&driver | TAIWAN-SYNTEC |
| Spindle encoder | TAIWAN-SYNTEC |
| Spindle bearing | JAPAN-NSK/NTN P4 class |
| Ball screw bearing | JAPAN-NSK/NACHI |
| Ball screw | TAIWAN HIWIN/JAPAN-THK |
| Linear guideway | TAIWAN HIWIN/JAPAN-THK |
| Lubrication system | JAPAN-HERG |
| Main electricity parts | FRANCE-SCHNEIDER |
| Pneumatic parts | TAWAN-AIRTAC |
| Lock nuts | TAIWAN-YINSH |
| Shaft coupling | GERMANY-KTR |
Standard configuration: - SYNTEC 220TB CNC controller - Rotary guide bushing - Dual spindle - Parts catcher& convey belt Optional configuration: - High pressure coolant system - Oil mist collection system - Angular live tool - Automatic chip conveyor - Automatic bar feeder Other models choice:
