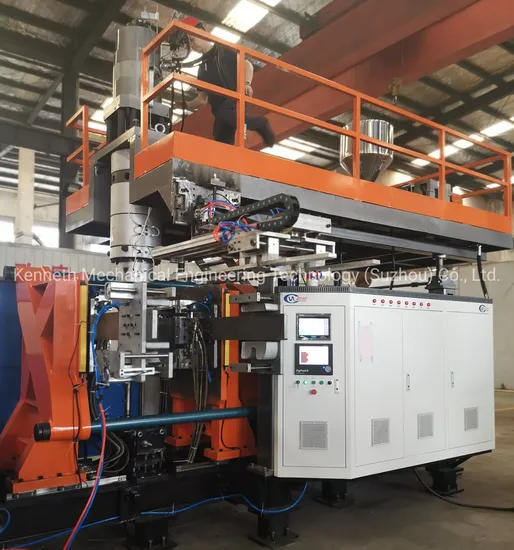

HDPE Jerrycan Bottle Extrusion Blow Molding Machine

Product Description

Product Description
Liquid detergent or soap sold on the market mostly packed in plastic bottles with max 5 liter capacity. HDPE is the major plastics used for producing the detergent bottles.
Detailed Photos
Product Parameters
Die Head: accumulator head, intermittent extrusion
Screw Diameter: 100mm
Extrusion Capacity(HDPE/ABS): 180kg/hr
Driving Mechanism: servo hydraulic
Clamping Force: 440kN
Total Installed Power: 135kW
Dimension(L*W*H): 5420*2450*3900mm
Weight: 16ton

Extrusion blow molding machines are used for making HDPE detergent bottles with an average cycle time of 22 second. Thus, it is easy to configure the station and parison head number or mold cavities of one blow molding machine, and the number of blow molding machines as per the production rate demand from bottle manufacturer.
In order to meet the raising demand on the high productivity blow molding machine, Kenneth team developed a 2+2 5L blow molding machine with a production rate of 650 bottles per hour. It is equipped with a double parison die head, two sets of 2 cavity mold and a plasticizing system with the screw of 80mm diameter.
Production rate: 80~120pcs of 25 liter HDPE bottles per hour
Fully automatic production
User friendly control&operation
Full aspect of human safety protection
Plasticizing capacity: 180kg/hr HDPE
Hydraulic station with energy accumulator provides powerful hydraulic force
Stainless steel made slides for collection of finished bottles

---
