Auto Feed Vertical Drill Machine Z5032c-1/Z5040c-1/Z5045c-1

US$1,300.00-1,700.00 1 Piece (MOQ)

Basic Info.

Model NO.
Z5032C-1/Z5040C-1/Z5045C-1
Structure
Vertical Drilling Machine
Layout
Vertical
Controlling Mode
Artificial
Number of Shaft
1
Hole Diameter
50-100mm
Automatic Grade
Automatic
Precision
High Precision
Certification
CE, RoHS, ISO 9001
Condition
New
Step of Spindle Speed
6
Max. Travel of Worktable
600mm
Distance From Spindle Axis to Column
290mm
Transport Package
Wood Case
Specification
CE ISO9001 RoHS
Trademark
L&T
Origin
Tengzhou China
HS Code
84592900
Production Capacity
200 PCS/Month

Product Description

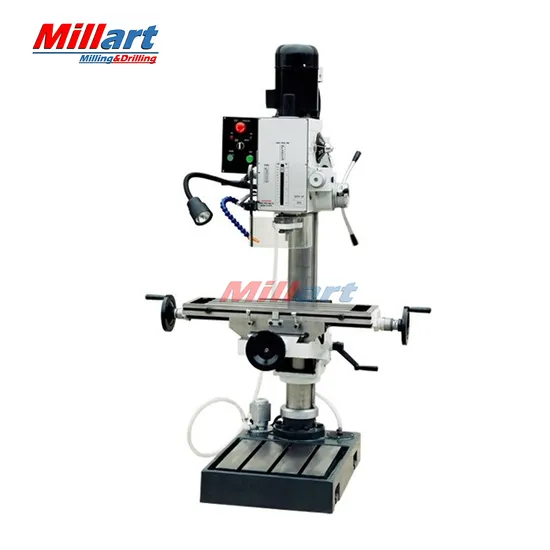

Auto Feed Vertical Drill Machine Z5032c-1/Z5040c-1/Z5045c-1
Features:
Drilling, milling and tapping
Worktable can move X Y Z axis
Head swivels 360 degree horizontally
Headstock and Worktable up & down perpendicularly
Super high column
Precision micro feed
Positive spindle lock
Distinct auto device for releasing tools, operate easily
Geared drive, lower noise
Technical parameter:
Model Z5032C/1 Z5040C/1 Z5045C/1
Max.drilling capacity 32mm 40mm 45mm
Spindle taper M.T.3 or R8 M.T.4 or R8 M.T.4 or R8
Spindle travel 130mm 130mm 130mm
Step of spindle speed 6 6 6
Range of spindle speed 50Hz 80-1250 r.p.m 80-1250 r.p.m 80-1250 r.p.m
60Hz 95-1500 r.p.m 95-1500 r.p.m 95-1500 r.p.m
Spindle feed steps 6 6 6
Spindle feed range 0.06-0.3mm/r 0.06-0.3mm/r 0.06-0.3mm/r
Distance from spindle axis to column 290mm 290mm 290mm
Distance from spindle nose to table 700mm 700mm 700mm
Distance from spindle nose to base 1125mm 1125mm 1125mm
Max.travel of headstock 250mm 250mm 250mm
Swivel angle of headstock 360/ 90 degree 360/ 90 degree 360/ 90 degree
Max.travel of worktable 600mm 600mm 600mm
Worktable size 730x210mm 730x210mm 730x210mm
Worktable travel X,Y,Z axis 500x205x570mm 500x205x570mm 500x205x570mm
Base size 417x416mm 417x416mm 417x416mm
Swivel angle of table 360 degree 360 degree 360 degree
Table tilt +/-45 degree +/-45 degree +/-45 degree
Size of stand base 417x416mm 417x416mm 417x416mm
Motor Power 0.75KW(1HP) 1.1KW(1.5HP) 1.5KW(2HP)
Net weight/Gross weight 450kg/500kg 452kg/502kg 455kg/505kg
Packing size 1850x750x1000mm 1850x750x1000mm 1850x750x1000mm

Standard accessories:
Drill chuck
Taper sleeve
Wrench
Optional accessories:
Machine vice
Coolant system
Work lamp
Spindle guard
