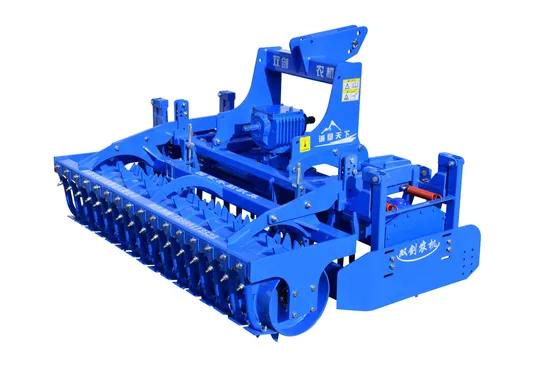

Small-Scale Cultivation, Efficient Agricultural Machinery Drive Harrow, Working Width 2 Meters

Product Description

Driving HarrowThe power harrow utilizes the opposite rotation of two adjacent tines to crush the soil. The working depth can be controlled and can reach 10-30 centimeters, allowing for soil fragmentation, leveling, and compaction to be completed in one pass. After the work is completed, the surface of the ground is relatively smooth, forming a good seedbed. This seedbed has the advantages of high uniformity, good consistency in working depth, suitable soil porosity, and strong water retention capacity. When using the power harrow on land with straw returning, the straw can be further buried in the soil, while a rotary tiller may bring buried straw back to the surface. Long-term use of a rotary tiller for land preparation can lead to soil compaction, while the power harrow, as it does not turn over the soil, can maintain soil moisture. On leveled land, the emergence rate of crops with the power harrow is significantly higher than with a regular rotary tiller. It is suitable for small-scale cultivation and is convenient for tractor operation.
The 1BQ-2.0/2.5/3.0/3.5/4.0/4.5 series of straight box-type driven harrows are products developed based on the cultivation methods and special soil conditions in Xinjiang, China, and by absorbing and learning from advanced foreign technology concepts. This product performs soil crushing operations by the opposite rotation of two adjacent tines, with controllable working depth and the ability to complete soil fragmentation, leveling, and operations in one pass. The seedbed prepared by this product has the advantages of high smoothness, good consistency in working depth, moderate soil porosity, and water retention. Product Use


Product Description
Product features:
1. The rake teeth vertically stir the soil without damaging its structure.
2. The polygonal welded integral power transmission box has a stable structure and high reliability.
3. The upper and lower bearing seats of the blade disc are processed and formed by CNC gantry boring and milling machine, ensuring good concentricity, uniform tooth clearance, smooth operation, and low power loss.
4. The blade disc is equipped with front and rear protective plates to prevent entanglement with drip irrigation belts and wires.
5. The gearbox and power transmission box are designed separately for easy maintenance and upkeep.
6. The gearbox is designed with multiple power and *** ranges to meet the different power requirements and operating needs of tractors in different soil conditions.
7. The gearbox features a fork shift mechanism, allowing for quick adjustment of output *** according to the operational requirements.
8. The integrated main spindle disc design ensures high strength and low failure rate.
9. The independent traction frame design facilitates the installation of additional operational modules and enhances the overall rigidity of the transmission box.

Detailed Photos

Product Parameters
Packaging & Shipping
Company Profile
FAQ
1. Are you manufacturer or trade company?
A: We are manufacturer, we have our own factory. Our factory has department for exploitation , producing, sales, after-sell service, packing , warehouse, we can offer you best products and best service.
2. Are you interested in the agency of a local company?
A: Yes, we are very interested in this business cooperation. We want to work with local partners to sell more accessories and provide better service in the local market. If you are also interested, we can discuss further.
3. What are your packing conditions?
A: Generally speaking, we use wooden cases for packing.
4. What's your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
5. How about delivery time?
A: Generally, it will take 30 to 45 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
6. How do you make our business long-term and good relationship?
A: 1. We keep good quality and competitive price to ensure our customers benefit;
2. We respect every customer as our friend, no matter where they come from;
3. If you have any feedback that is cherished to us, please send email to us.
7. Do you supply samples?
A: We support sample order.
8.Others: OEM: Support technical changes.
9.Free train: plant training on installation and maintenance techniques.
10.QC: Quality inspection before delivery for each unit

---
