Industrial Food Sterilizer Autoclave Water Spray Retort Machine Price

Product Description

Product Description
Industrial Automatic Food Sterilizer Autoclave /Retort Machine for Glass Jars Tin Can Food Sterilizer

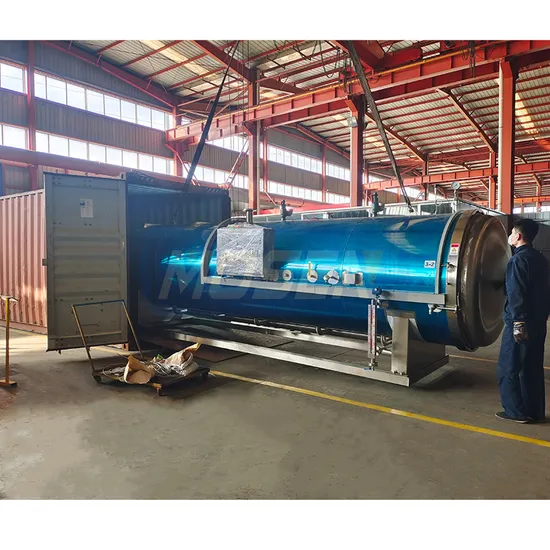

1.Spray retort consists of horizontal tank, heat exchanger, circulating water pump, cooling water pump, pipeline and various valves and automatic control system. There is water showering, side spray, top spray and all angles spray. Softened water recycle and saving.
2.Hot water downwards from tank and inject onto food surface. Disperse cold air cloud inside of tank to ensure the temperature uniform with no cold air cloud and free of dead angle.
3.Temperature rising and cooling process curve divided into several steps under plate or tube heat exchangers work, Temperature evenly uniformed among basket center and surface.
4. Entirely automatic interface system with visual monitoring control PLC+HMl enhance better effect of automated operation
5. Adapted to food and beverage in glass bottles, tin cans, soft package, plastic bottles ect.
Sterilization pot has been widely used in food industry and pharmaceutical industry. It has wide application for vacuum packaged product, such as flexible package, CPP+PA, aluminum foil, tinplate, plastic, etc.
Advantages:1. Electric automatic control system: automatic control in temperature, pressure automatic and sterilizing time.
2. Safe operation: electric and mechanical double interlock protection system for safe information.
3. Over pressure protection :electric and mechanical double over pressure system for safe operation.
4. Over temperature protection: electric over temperature protection system.
5. Equalized heat distribution: the temperature inside the sterilizer is equalized distribution, which means the temperature difference is less than 0.5 ºC.
6. Temperature difference adjustment: electric type.
7. Humanization design and long lifespan material: stainless steel material, high intelligent automatic control system.

Model	PLJ10-1B	PLJ10-2B	PLJ12-2B	PLJ12-3B	PLJ12-3.6B	PLJ14-3B
Inner diameter(mm)	1000	1000	1200	1200	1200	1300
Length(mm)	950	1900	1900	2870	3820	4000
Capacity(m3)	1.00	1.80	2.60	3.70	4.06	5.62
Pot thickness(mm)	4	4	5	5	5	5
Max working temperature(ºC)	147	147	147	147	147	145
Weight(kg)	560	650	860	1200	1300	3320
Voltage(V)	380	380	380	380	380	380

Application

Company Profile
1.Indirect heating or indirect cooling,the cooling water doesn't contact with the process water,avoiding secondary pollution of the food,and no need to use water to treat the chemical. High temperature sterilization for a short time.
2.The steam consumption is reduced,and the steam and the sterilized water after atomization are directly mixed in the sterilizer to increase the speed of temperature rise and fall.
3. A small amount of process water is quickly circulated to quickly reach the predetermined sterilization temperature.
4.Low noise,creating a quiet,comfortable working environment.
5. Perfect pressure control,the pressure of the entire production process is constantly adjusted to adapt to changes.
Certifications
Packaging & Shipping
1.Are you a factory or a trading company ?
We are the factory, located in Shandong. Expecting your visit at anytime.
2.How long is the delivery time of bulk orders ?
Bulk order lead time: About 35 working days. 3.Do you have OEM,ODM SERVICE?
Yes, we have OEM,ODM service, besides low MOQ.
4.What are your terms of delivery?
We accept EXW, FOB, CIF etc. You can choose the one which is the most convenient or cost effective for you.
5.What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order. Generally speaking, the production lead time is within 10-15days, however, we suggest that you start inquiry two months before the date you would like to get the products at your country.

---
