Mattress Tape Edge Machine

US$5,500.00-6,900.00 1 SET (MOQ)

Basic Info.

Model NO.
BWB-5
Knitting Method
Double
Needle Style
Compound Needle
Computerized
Computerized
Certification
CE, ISO9001: 2000
Condition
New
Total Power
1.65kw
Sewing Head Type
Chain Stitch
Max Sewing Speed
3000r/Min
Sewing Head Work Angle
35°~55°(Adjustable)
Table Lift Range
0-400mm
Sewing Head Lift Range
0-200mm
Sewing Head Lift Control
Electric
Available Mattress Thickness
50~700mm
Walk Carriage Control Type
13.6m/Min.
Walk Carriage Speed
Electromagnet Clutch
Transport Package
Crate
Specification
CE\SGS
Trademark
BCD machinery
Origin
Nanjing, China
HS Code
84522190
Production Capacity
100sets/Year

Product Description

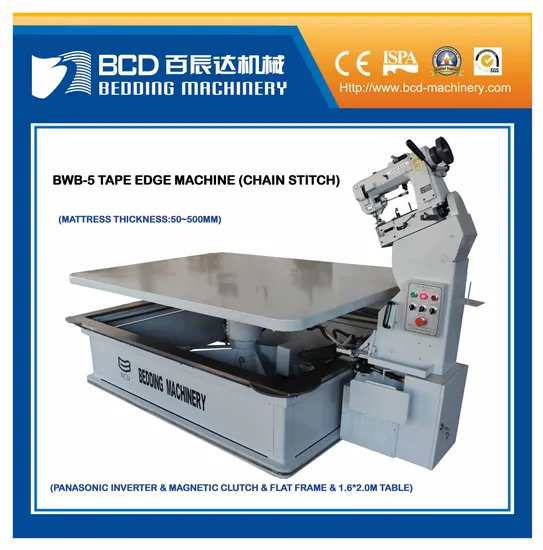

Mattress Tape Edge Machine (BWB-5)
Main application and performance
This mattress machine is mainly for high-class thick mattress making, Mattress machine is especially suitable for pillow top mattress making . Walking carriage and sewing head are all driven by servo motor , and controlled by PLC program. This machine has 3 normal sewing speed selection, 3 stitching length, operators may select it freely according to skill . Frame tracks adpts special arranged high precision processed steels materials, which makes machine running more stable and service lift durable . Sewing head of this machine can be lift up and down vertically , corner speed auto slow down , all make operation of this machine simple and convenient.
Sewing head type Chain Stitch
Max Sewing speed 3000r/min
Sewing head work angle 35°~55°(adjustable)
Table lift range 0-400mm
Sewing head lift range 0-200mm
Sewing head lift control Electric
Available mattress thickness 50~700mm
Walk carriage control type 13.6M/min.
Walk Carriage speed Electromagnet clutch
Total motor power 1.65KW
Work table size 1600*2000mm,1800*2000mm , 2000*2000mm
Work efficiency 10~20 mattress/H(depending on skill)
