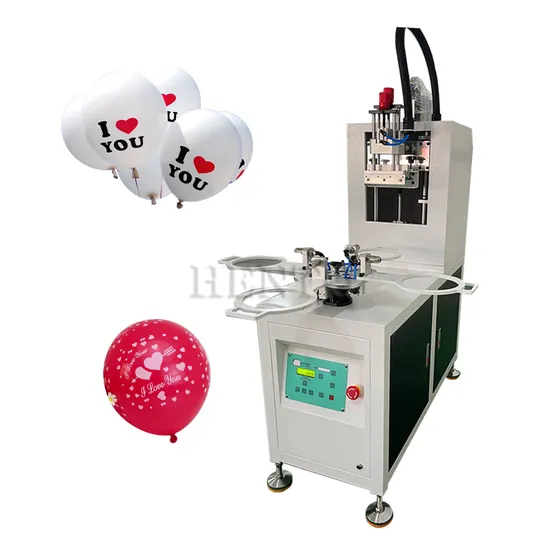

Semi Automatic Screen Printer / Balloon Screen Printing Machine

Product Description

Semi Automatic Screen Printer / Balloon Screen Printing Machine
Product Description 1.Microcomputer control each function action, easy to operate, five automatic counter.
2.All pneumatic components using well-known brands, to ensure the quality of the machine.
3.The front and rear scraping oil cylinder + linear bearing drive, to ensure smooth and smooth running.
4.Screen lifting using cylinder + guide column drive.
5.The table adopts four-station design, rotate a station every 90 degrees, automatic blowing, balloon blowing size can be adjusted.
6.Oil-free three-point combination does not produce exhaust oil fog pollution, suitable for clean room use.
7.It can be customized according to customer requirements, to meet different requirements.
Product Parameters

Model	HT-QQ1515
Printing table size	200*200mm
Printing area size	150*150mm
Printing screen frame size	300*400mm
Printed balloon diameter	200mm
Machine size	1030*520*1250mm
Fastest printing speed (full speed)	600pcs/h
Voltage	220V 50Hz single phase
Air pressure	5~6kgf/cm²
Power	100W
Control method	Microcomputer control
Net Weight	60kg

Detailed Photos
