High Precision CNC H Beam Steel Drilling Machine for Efficient Processing

Product Description

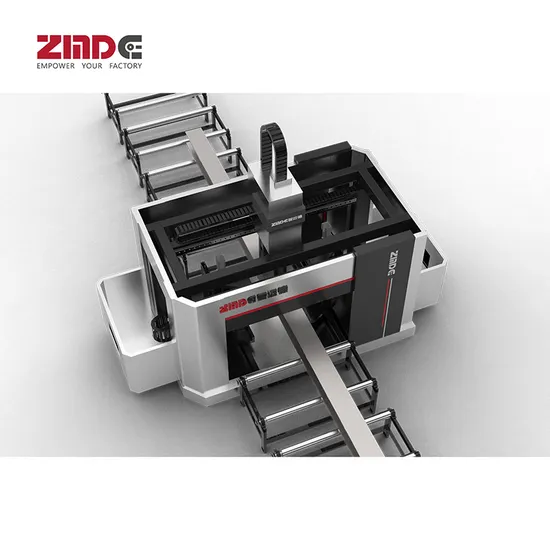

ZMDE High Precision H Beam Steel Processing Machine CNC 3D Drilling Machine

Technical Parameters

Item.	Model.	Machine Technical.
CNC 3D drill	ZMD-GSWZ10070/3A	1.H-beam: 150x80~1000x700mm 2.U-beam: 150x80~1000x400mm 3.Box beam: 150x80~1000x400mm 4.Thickness: ≤80mm 5.Length: 12m 6. Short material limit: automatic processing ≥ 3000mm 7.Manual processing: 690~3000mm 8.Power source: AC 380V 50HZ 3-phase

Our cutting-edge device is engineered to drill precise holes on three sides of H-beam steel simultaneously. Featuring 7 CNC axes and a CAD/CAM directly generated processing program, this machine ensures unparalleled accuracy. With a maximum H-beam section size (belly height × wing width) of 1000×500mm and a maximum drilling diameter of 33.5mm, it meets the most demanding requirements. The control system includes a computer numerical control system, AC servo system, photoelectric encoder, and PLC. Simply input the workpiece size to automatically generate, store, recall, display, and process the machining program by part number whenever needed.

More Machine Configuration (Due to different product models, the actual product may differ slightly from the picture)
Machine Model		ZMD-SWZ-74-A
H Beam Processing range(mm)		150×100-700×400
Automatic feeding length(mm)		1500-12000
Max. Web plate thickness(mm)		≤40
Max. weight of workpiece(kg)		4000
Number of drilling spindles		3×3=9
Spindle speed range(r/min)		180-720
Axial working speed(mm/min)		20-200
pper unit spindle feed travel distance(mm)		220
Max. drilling diameter(mm)		Φ33.5
Total power(kw)		≈30
Equipment Dimension L×W×H(mm)		28000×4220×3220
