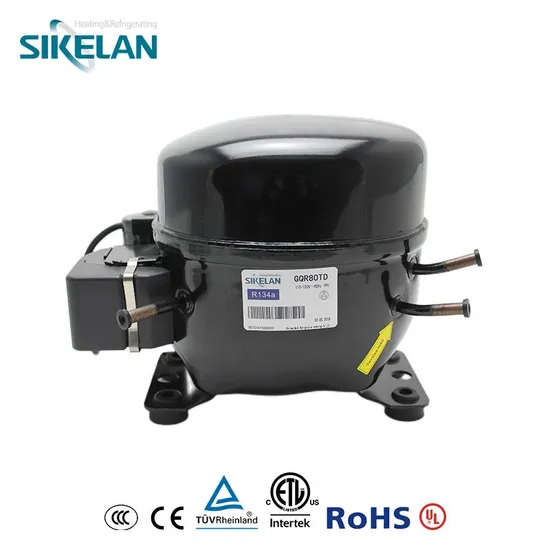

Wear Resistance Light Commercial R134A Refrigerant AC Hermetic Compressor for Freezer

Product Description

Product Description M/HBP-R134A(110V-120V~60HZ) OE Light Commercial Refrigeration Compressors
Adopting high-quality components, SIKELAN refrigeration compressors are always environmental friendly, high efficient, and widely praised by customers in the refrigeration industry due to its low noise, high performance, and long service life.
Features:
1. Low Noise: - There are two welding methods for the compressor casing: flange butt welding or insert welding. The thickness, shape, and internal cavity size of the shell have a significant impact on noise.
- There are two fixing methods for the movement: suspension spring type and seat spring type, with the seat spring compressor having less noise and vibration.
2. High Performance: - Equipped with professional valve components. The valve group is the heart of the compressor and plays a significant role in the performance of the compressor.
3. Long Service Life: - The crankshaft and connecting rod have good performance and are resistant to friction.
4. High Efficiency & Eco-friendly:
- As the power in a hermetic compressor, an electric motor converts electrical energy into mechanical energy, driving the piston to compress refrigerant vapor, enabling the refrigerant to circulate in the refrigeration system and achieve the purpose of refrigeration
Widely used for a variety of commercial/domestic freezers and refrigerators, like ice maker, beers coolers, merchandisers, water dispensers, refrigerators, supermarket refrigerated islands, kitchen freezers, etc.

Product Parameters Compressor Technical Data: Light Commercial R134a M/HBP 110-120V~60HZ OE

Serial	Model	HP	Cooling Capacity -ASHRAE						Motor type	Starting Device	Starting capacitor (uF)	Running capacitor (uF)	Cooling	Certificate
			Test Conditions: 7.2ºC(45F)
			Capacity (W)	Capacity (Btu/h)	lnput Power(W)	Current (A)	COP (W/W)	EER (Btu/Wh)
L	GQR30TD	1/10	295	1007	134	1.80	2.20	7.51	RSIR	PTC/Heavy Hammer PTC/Current Starting Relay	/	/	F	CCC
	GQR35TD	1/9	465	1587	211	2.00	2.20	7.52	RSIR		/	/	F	CCC
	GQR45TD	1/6	540	1842	245	2.10	2.20	7.52	RSIR		/	/	F	CCC
ML	GQR55TD	1/6+	610	2081	290	2.50	2.10	7.18	RSIR		/	/	F	CCC
	GQR60TD	1/4	735	2508	320	2.90	2.30	7.84	RSIR		/	/	F	CCC
	GQR70TD	1/4	806	2750	385	3.50	2.10	7.14	RSIR		/	/	F	CCC
MQ	GQR80TD	1/4+	907	3095	415	3.80	2.20	7.46	CSIR		161~193	/	F	CCC
	GQR90TD	1/3-	1019	3477	465	4.20	2.20	7.48	CSIR		161~193	/	F	CCC
	GQR90TD	1/3-	1019	3477	465	4.20	2.20	7.48	CSIR	PTC/Heavy Hammer PTC/Current Starting Relay	161~193	/	F	CCC
	GQR11TD	3/8	1100	3753	480	4.40	2.30	7.82	CSIR		161~193	/	F	CCC
	GQR12TD	3/8+	1270	4333	580	5.20	2.20	7.47	CSIR		161~193	/	F	CCC
	GQR14TD	1/2	1402	4784	610	5.50	2.30	7.84	CSR		161~193	16	F	CCC
	GQR16TD	1/2+	1680	5732	720	7.30	2.26	7.96	CSR		161~193	16	F	CCC

→ More Compressor Please Click to Contact Us! Company Profile

Certifications With abundant technique force,we have our own researching, developing, manufacturing, inspecting and testingcenters, and imported the international advanced high-tech equipments. Our company has passed the ISO9001,ISO14001,OHS18001 international management system certificates. The products have got UL,ETL,CE,CB,and CCC certificates. Our products are not only selling strongly in more than 30 provincesand municipality,but also largely exporting to Europe,America,Australia,Middle East, Africa and South Asia. We have won an excellent reputation from the customers and friends by our product quality,price versus performance ratio and service.
FAQ Q1: Are you a manufacturer or trader?
A1: Zhejiang Maidi Refrigeration Technology Co., Ltd. is a Hi-tech enterprise. We own the standard plant and office building which covering 21, 000 square meters. With abundant technique force, we have our own researching, developing, manufacturing, inspecting and testing centers, and imported the international advanced equipments.
Q2: How to match sikelan compressor to refrigeration?
A2: We have a professional team of engineers who provide technical support and online guidance on product installation and replacement.
Q3: How do you ensure quality?
A3: We have a dedicated product research and testing center with authoritative quality management system certification: ISO9001/ISO14001/OHS18001.
Q4:What's sikelan compressor usage scenario?
Q4:Our product could use in mobile applications e.g. cooling boxes,vans,boats, etc,water dispensers, minibar, refrigerators,freezer, ice maker, beers coolers, merchandisers, dehumidifier, refrigerated islands and kitchen freezers.
Q5: How much does a refrigeration part cost?
A5: Factory price for you, not cheapest but the competitive price with good quality.
Q6:What's voltage sikelan compressor available?
Q6:We have 220-240v and 110-120v for 50hz-60hz in AC compressor. And we have 12/24v/48v in DC Compressors. Depend on customer requirements.
Q7:What certifications do sikelan have?
A7:We have UL, CCC, CE, CB, ETL, TUV, RoHS certifications in compressor.
Q8:What's our sikelan competitive advantages?
A8:a)More compressor model-----We have DC compressor, AC compressor and frequency conversion series compressor.
b)Lower noisy about compressor
c)Stable quality-----Coming from good material and technology.
d)Good service -----Satisfaction service before and after sale.

---
