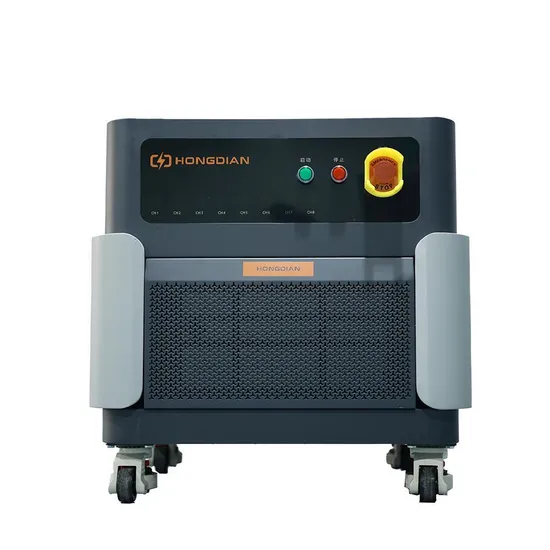

Advanced Battery Safety Analyzer and Overcharge Discharge Testing Equipment/Tester

Product Description

Product Description
This system can provide CC mode, CV mode, CCCV mode, Pulse mode, CP mode, CR mode, DCIR mode, and HPPC etc. Through the work step editor, they can be edited to work in a combined work mode and can be quickly switched on the user's requirements. Through these basic functions, the test system can carry out battery performance testing, rate charge and discharge testing, capacity testing, cycle life testing, DC internal resistance testing, reliability testing, energy efficiency testing, simulated road condition testing, etc. When the same device works with multiple channels, the channels are completely independent of each other; when there is a need to expand the current, the channels can be connected in parallel.
Equipment Characteristic High Accuracy: 0.05% F.S. Voltage and Current accuracy 30V~120V,10A~120A models for choice Fast Response: 10ms current response time, 20ms current switching time Efficient energy regeneration BMS communication csv/exl file editing/importing Detailed Parameters

Environmental conditions

Temperature	Operating temperature range	0ºC ~ 45ºC
	Storage temperature range	-10ºC to 50ºC
Humidity	Operating humidity range	≤ 70% RH (no moisture condensation)
	Storage humidity range	≤ 95% RH (no moisture condensation)

Ac input parameters

Input power	AC 380V±10% 50/60±5Hz
Power factor	≥ 99% (full load)
Charge and discharge current distortion rate	≤ 5% (full load)
Input impedance	≥ 1 MΩ
Input power	22 KW
Machine efficiency (Max)	≥ 92% (full load)
Noise	≤75dB
Cooling method	Forced air cooling
Level of protection	IP20

DC output parameters

Channel	Number of channels	2
	Single channel power	10 KW
	Overall output power	20 KW
Voltage	Range	Charge: 0V ~ 100V|Discharge: 6V ~ 100V
	Precision	≤ 0.05% FS
	Resolution	1mV
Current	Range	-100A ~ 100A
	Precision	≤ 0.05% FS
	Resolution	1mA
Time	Current response time	10ms (10%FS to 90%FS)
	Charge discharge conversion time	20ms (-90%FS to 90%FS)
Channel control mode		All channels can be controlled independently

Auxiliary channels

Auxiliary channel type	NTC
NTC Temperature range	- 30 ~ 120 ºC
Temperature accuracy	Plus or minus 2 ºC
Temperature resolution	0.1 ºC
Number of temperatures per channel	1 pcs

Work step functional characteristics

Support experimental testing	Battery cycle life test, battery capacity test, battery charge/discharge characteristic test, battery charge retention ability test, battery charge and discharge efficiency test, battery charge, overdischarge bearing capacity test
The minimum data recording time	10ms
Other data recording intervals	△V, △I
Type of communication	The communication mode of the host computer is based on TCP/IP protocol
	Communication interface: Ethernet, CAN, 485; Support DBC import
Number ofworksteps	2000
Number of cycles	65535
Loopnesting	5
Charge and discharge mode	Static, pause, constant current charging CC, constant voltage charging CV, constant resistance charging CR, constant current constant voltage charging CCCV,constant power charging CP, constant current discharge DC, constant power discharge DP, constant resistance discharge DR, DC internal resistance test (DCIR)
Cutoff conditions	Voltage, current, capacity, energy, time, power, numberof cycles,BMS parameters, custom advanced parameters (support one or morelogic and or combination)
Perform the type of action	goto, pause, protect, next,end
Import the DBC file	Support file editing, saving and importing
DC Internal resistance test (DCIR)	Support DCIR work step, hardware real-time calculation, support graphic two kinds of tests
Global parameter configuration	Voltage upper limit, lower limit; Current upper limit, lower limit; Power upper limit, lower limit; Global recording conditions (time, voltage, current interval)
Scan barcode start	Support barcode scanning and data binding, classify data by bar code for easy query
Data storage method	Database file form (suffix.bTS format)
Curve description	X-axis time Y-axis voltage, current, capacity
Data view	Tree expansion and contraction view, divided into cycle layer, work step layer, record layer view
Data export method	Export in Excel or CSV format

Protection function

AC side protection	Power grid voltage over/undervoltage protection, surgeprotection,island protection, over and underfrequency protection, hardware over temperature protection, self-detection protection, etc
DC side protection	Busover and under voltage protection, hardware over temperature protection, battery channel line reverse connection protection, etc
Battery side comprehensive protection	Total battery voltage, lower limit protection, battery voltage, lower limit protection, battery temperature upper limit, lower limit protection, battery charge and discharge current upper limit protection, battery capacity, lower limit protection, BMS communication off-line protection, network off-line protection
Power down data protection	With memory powerfailure protection function, can effectively avoiddata loss caused bypower failure orcall withoutmodifying the process can then continue to run at theprocess break point
The data file continues to run (Channel migration)	Without changing thedevice server, youcan continue theprevious process operation byloading the historical data file.Thedevice will continue toperform the test process fromthelast running position of the data file.

Software System Description Through our independently developed HD testing software, we can control various devices and charging and discharging channels for independent programming control, and display data in real-time on the interface, synchronously saving test data.The interface of the upper computer software is clean and user-friendly, which can be quickly mastered so to reduce the time cost for customers.
Packing and shipping
1.Standard exported package: Internal anti-collision protection, external export wooden box packaging.2.Shipping by Fedex, by air, by sea according to customers' requirements to find the most suitable way,3.Responsible for the damage during the shipping process will change the damage part for you for free.4.Supply with the suitable voltage input and source plug according to your country requirements.
Company profile
shenzhen Hongda New Energy Co., LTD., founded in 2014, is a supplier of new energy (energy storage) detection equipment and detection technology integrating research and development, production and sales. The company's "Hongdian" brand is committed to the research and development, production and sales of energy storage, power lithium battery pack aging detection equipment.
Over the years, the company's steady growth, office, production environment reached 6000 square meters. The company has energy saving feedback technology, battery management and control, battery system integration and other technologies. The company mainly serves energy storage, power and other lithium PACK manufacturers.
With the development of business, the company's products are constantly enriched, including energy storage, power lithium battery pack aging detection equipment, high voltage, high current, high power battery testing equipment, power battery pack, energy storage power station, mobile base station standby power supply and other new energy projects aging detection equipment.

---
