Greenlandplast Waste Pet Bottle Recycling Machine Pet Flakes Washing Recycling Line Plastic Washing Line

Product Description

Product Description
Greenlandplast Waste PET Bottle Recycling Machine Pet Flakes Washing Recycling Line Plastic Washing Line
This PET bottle recycling line is mainly used to recycle waste PET bottles to make PET flakes ,mainly inclue de-baling machine, conveyor belt, label remover, sorting system,crushing, floating washing tank, hot washing tank, frication washing, dewatering &hot air drying system, label separator a,with the above machines and process can easily to remove the labels, caps, rings, glue, dirties and other impurities, finally you will produce to clean PET flakes.It can reach achieve request of "Bottle to Bottle" ,"Bottle to Fiber product"
We can make recycling line according to different customize requirements!
Product Parameters
Technical dates

Capacity	Installation power	Area required	Labor required	Water supply
500kg/h	155kwh	35*10*6m	5-6	3t/h
1000kg/h	285kwh	50*12*6m	6-8	4t/h
1500kg/h	350kwh	70*12*6m	6-8	5t/h
2000kg/h	485kwh	80*15*6m	9-10	6t/h
3000kg/h	690kwh	100*18*7m	10-12	7t/h

Detailed Photos

Label remover
Remove label ,caps,neck-rings,get rid of non-PET part effectively ,max can reach 95-98% ,according to customers' choice and bottles conditions ,there are dry type and wet type label removing options

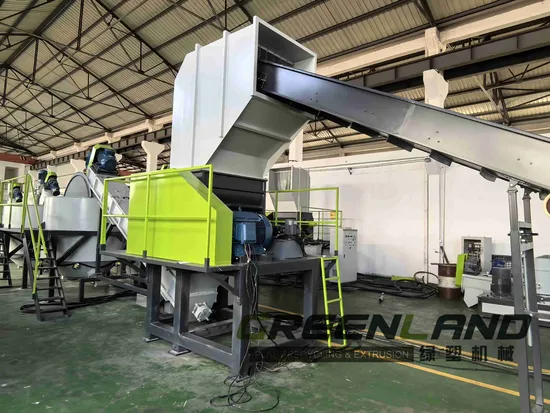

Belt conveyor &Crusher
Crush PET bottles, SKD material blade,can work with water,make PET flakes cleaner
Screw loader/friction washer
to convey PET flakes into next process machine ,stainless steel 304
Floating washing tank
Washing PET flakes ,at the same time ,separate and remove PVC labels and HDPE cap chips,stainless steel 304
Hot washing tank
Electricity heating or steam heating,automatical temperature controlling system ,may add NaOH or other detergent,can remove PET flakes glue and oil
High speed friction washing/dewatering machine
to dry and clean PET flakes by high speed friction
Hot air drying&zig-zag separator
dry PET flakes after dewatering further step,by hot air ,electricity heating
