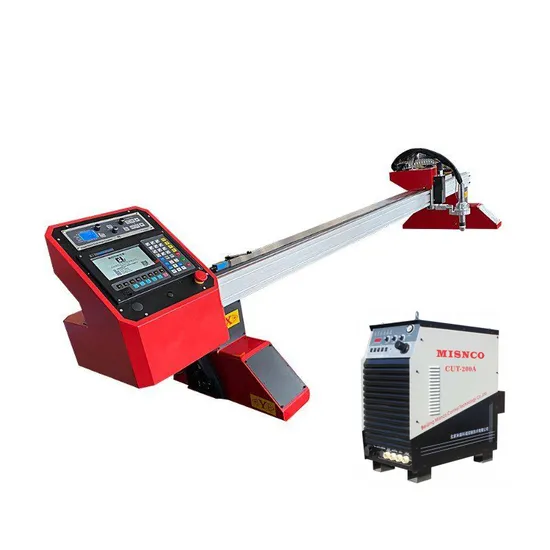

High Speed Mini Gantry CNC Flame Plasma Cutting Machine

Product Description

Product Description
High Speed Mini Gantry CNC Flame Plasma Cutting Machine
Function of Machine


Introduction

The gantry CNC plasma and flame cutting machine is specially designed for metal plate cutting,it is characterized of high automation and efficiency,easy operation and long service time. This CNC plasma and flame cutting machine is gantry structure with double-driven system, working size can be customized upon requirement.It can be used for cutting carbon steel, stainless steel and non-ferrous metal in any 2d graphics, thus is widely used in metal cutting fields.

Features
1. Steel hollow beam design ensures good heat dissipation without deformation.
2. The gear-rack driving motions without engagement gap ensure the machine running smooth at high speed.
3. Fully functionalized CNC system and optocoupler device enhance the super anti-jamming capability of the plasma system.
4. World's top branded components and circuits ensure long service life.
5. Multiple cutting torches can be configured. Both flame and plasma torches are optional to meet the needs of cutting different materials in a range of thickness.

Application
This machine can cut mild steel with flame cutting, and cut high carbon steel, stainless steel,aluminum, copper and other nonferrous metal with Plasma cutting; can configurate as you required.,thus it is widely applied in industries such as machinery, automobile, shipbuilding, petro-chemical, war industry, metallurgy, aerospace, boiler and pressure vessel, locomotive etc.

Detailed Photos
Product Parameters

No.	Technical specification of cnc portable flame cutting machine
1	Model	JX-1525	JX-1530	JX-2060
2	Power source	AC 220/380±10%VAC 50/60Hz
3	Cutting mode	O2/C3H8 or C2H2
4	Effective cutting range(mm)	1500*2500	1500*3000	2000*6000
5	Input Voltage	220V, 50HZ
6	Cutting speed(mm/min)	0-8000mm/min
7	Cutting thickness(Flame)(mm)	6-160 (O2/C3H8 or C2H2)

8	Move precision	±0.2mm/m
9	Torch	Flame, electric height adjustment(±60mm)
10	Processing thickness(mm)	0.5-15mm
11	Cutting system	Shanghai Fangling control system
12	Total weight(kg)	110	120
13	Gas pressure(Mpa)	Max.0.1
14	Oxygen pressure(Mpa)	Max.0.7
15	Type of gas	C3H8 C2H2

16	Emergency stop	Yes
17	Working temperature	-5~45ºC
18	Power	350w
19	Plasma power	60-160A(it need to equip it according to the metal sheet thickness)
20	ARC	Untouched arc striking
21	Processing Materials	Iron, steel aluminum sheets, galvanized sheets, Titanium plates
