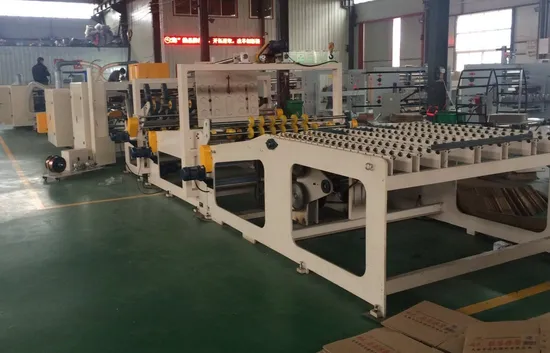

Shanghai Lincheng High Quality Factory Store Automatic Stitching Machine (model-2600)

Product Description

Product Description
Product Parameters Main introduction of each unit
A: Machine configurations:

Main introduction of each unit A: Machine configurations: Max.size(A+B)X2 2600mm Min.length A 180 mm Min.size(A+B)X2 720mm Max.height D 1150 mm Max.size(C+D+C) 1200mm Min. Height D 250 mm Min.size(C+D+C) 300mm Maximum width of the tongue E 35-40 mm Min.cover C 25mm Mechanical length 17000mm

Max.cover C	560 mm	Mechanical width	4650 mm
Max.width B	1320 mm	Mechanical weight(T)	18
Min.width B	180 mm	Mechanical speed (nail/min)	1200
Max.length A	1320 mm	Nail number	1-99

B Stitching head :

Swing stitching head speed	800 nail/min
Min.cardboard thickness	4mm
Max.cardboard thickness	12mm
U type Nail in wide	12mm
Flat wire specifications	17#(2.0x0.75)
Nail box tilt	45
Nail minimum distance	30mm
Motor power	12kw

C. Stacker part:

Min. stacker width	300mm
Max.stacker width	1600mm
Max.stacker length	250mm
Min.stacker length	1700mm
Speed	120m/min

D. Strapping part:

Min.strapping width	350mm
Max.strapping width	1200mm
Max. Strapping length	1300mm
Min.strapping length	300mm
Single strapping speed	0.5s

Features Main structure:
1.The machine-wide computer control, easy to operate, simple; store 1000 single nail;
2.Bottomless box with a lap can be nailed (its required when place order);
3.3-5 minutes to adjust the size, simple and quick;
4.Nail-head power servo motor, mechanical speed: 800 nails / min;
5.Feed the leading edge of the Department of vacuum adsorption belt feeder to ensure that cardboard boxes are not skewed; Feed the leading edge of the machine can be individually adjusted belt level to increase the service life;
6.When feed side lapping device can send paper neatly smooth;
7.Feed unit adopt PLC control system to ensure that the nail from the stable and accurate,conveyor belt can adjust easily to prolong machine life.
8.Paper feed motor use servo motor control to ensure stable and accurate nails from;
9.This machine is designed with plastic function, make sure it won't appear in the nailing scissors, neatly not skew;scissors mouth does not exceed plus or minus 1mm around the machine to ensure that;
10.The machine can be nailed single screw, twin screw, strengthening one-time completion;
11.Matched with computer screen operation and displays the machine fault description;
12.The machine can be nailed three layer, five layer carton (noted in advance with order when its
required for a seven layers board);
13.The machine finally has automatic counting,stacking,order output.
14.The native baling part is for matching when order.
15.The machine has three function combination, can stick, nails, nail stick at the same time.
Main spare parts:
1. Servo motor, Japan Yasukawa brand;
2. Inverter, contactors are Schneider brand,Germany;
3. PLC is used by the Omron brand;
4. Touch screen for the Kunlun pass too;
5.Photoelectric switches, proximity switches, circuit breakers for the Schneider brand;
6. Stitching head,adopt Italy imported swing-type head, nail speed is faster and more accurate.
7. Cylinder, solenoid valve adopt the YadeKe brand,Taiwan; the main key cylinder solenoid valve is used by the SMC brand,Japanese;
8. All parts of the machine is making by precision CNC machining center processing;
