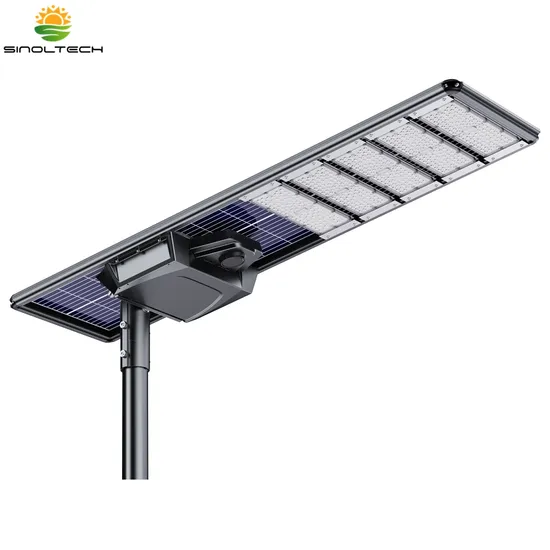

80W 13500lm Double Glass Solar PV Panel Power LED Road Lighting Dg-80s

Product Description

80W 13500LM Double Glass Solar PV Panel Power LED Road Lighting DG-80S
The double-glass modules powered light have good light transmittance, allowing more light to reach the solar cells and improving the photoelectric conversion efficiency.
Under the same installation area, they can generate more electricity, thus reducing the levelized cost of electricity. Product Parameters SOLAR LED STREET LIGHT
3Years Product Warranty
Model No.: DG-30S -30W/40W/50W/60W/80W/100W/120W

Model	LED Power	Luminous Flux	Solar PV	Lithium Battery	Controller	Outer Size	Unit Weight
DG-30S	30W	5000-5100LM	70W/6V	307WH/3.2V	PWM(PIR)	1022*445*86mm	16KG
DG-40S	40W	6500-6800LM	80W/6V	384WH/3.2V	PWM(PIR)	1082*448*86mm	18KG
DG-50S	50W	8000-8500LM	90W/18V	461WH/12.8V	MPPT	1232*445*86mm	22KG
DG-60S	60W	10000-10200LM	100W/18V	538WH/12.8V	MPPT	1392*445*86mm	25KG
DG-80S	80W	13400-13600LM	120W/18V	614WH/12.8V	MPPT	1572*445*86mm	28KG
DG-100S	100W	16800-17000LM	130W/18V	768WH/25.6V	MPPT	1682*445*86mm	35KG
DG-120S	120W	20200-20400LM	140W/18V	922WH/25.6V	MPPT	1792*445*86mm	40KG
Working Mode: Timing control, 2H100%, 2H70%, 2H40%, 5H10%, 1H50%
Mounting Height: 20W~50W LED, 5~8m; 60W~200W LED, 8~15m.
Warranty Period: 3 years.

Product Description
General information:
On the principle of eco-friendly and intelligent application, this integrated solar LED street light was born to solve the problem of high-expense electricity or lacking electricity in some areas, by using solar power energy. Well-designed by our senior ID engineer, the super-thin body design of 26mm thickness, detachable battery storeroom, and RGB indicator make it more artistic and easier to operate.
Product Advantages
--Compared with LED street light
1.Supplied by solar power energy, eco-friendly and no electricity charges;
2.DC12V power supply system, more safety than commercial electricity;
3.Easier installation, no buried cable;
4.Lower maintenance cost, all the problems will be found on smartphone APP;
5.All the lights are independent, won't affect each other if any problems occur;
6.Time control and light control, will automatically turn on/off according to the real-time environment, and can set lighting time in different periods.
--Compared with LED street light
1.Self-designed and self-developed, exclusive private mold;
2.All the components, such as solar panel, battery packing and controller, are entirely produced and tested by our workshop, which makes the quality control better;
3.Choose raw materials from major brand suppliers, such as Bridgelux;
4.All the lights will be under aging test for 72 hours to guarantee the quality before shipping;
5.Patent bluetooth APP, can turn on/off the light, read the data, troubleshooting and so on;
6.With detachable battery storeroom, easier to replace the battery or controller, no need to disassemble the light;
7.We provide 3 years warranty. Detailed Photos
Application
