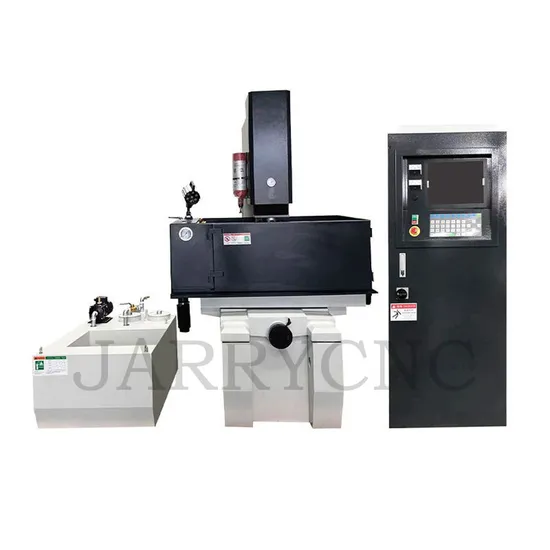

Practical Hot Sale Double Head High Precision CNC Die Sinking EDM Machine Znc600

Product Description

Product Parameters
ZNC-350 EDM Forming Machine Detailed technical parameters

Item	Description	Performance, function
1	Table size	600*320mm
2	About the trip	350mm
3	Before and after the trip	250mm
4	Main shaft trip	300mm
5	nner diameter of oil tank	880*570*350mm
6	Distance from upper spindle face to work table	500mm
7	Maximum spindle load	50kg
8	Maximum load carrying capacity of worktable	300kg
9	Power	4.0KVA
10	Maximum output current	50A
11	Maximum processing efficiency	≥400mm3/min
12	Minimum electrode loss	<0.2%
13	Optimum roughness	Ra≤0.4um
14	Display mode	Single axis CNC (industrial computer main board) LCD screen
15	Machine weight	1500kg
16	Machine tool dimensions	1350*1450*2450mm

ZNC-450 EDM Forming Machine Detailed technical parameters

Item	Description	Performance, function
1	Table size	750*450mm
2	About the trip	450mm
3	Before and after the trip	300mm
4	Main shaft trip	300mm
5	Inner diameter of oil tank	880*570*350mm
6	Distance from upper spindle face to work table	500mm
7	Maximum spindle load	50kg
8	Maximum load carrying capacity of worktable	500kg
9	Power	4.0KVA
10	Maximum output current	50A
11	Maximum processing efficiency	≥400mm3/min
12	Minimum electrode loss	<0.2%
13	Optimum roughness	Ra≤0.4um
14	Display mode	Single axis CNC (industrial computer main board) LCD screen
15	Machine weight	1800kg
16	Machine tool dimensions	1450*1550*2450mm

ZNC-500 EDM Forming Machine Detailed technical parameters

Item	Description	Performance, function
1	Table size	800*480mm
2	About the trip	500mm
3	Before and after the trip	400mm
4	Main shaft trip	300mm
5	nner diameter of oil tank	880*570*350mm
6	Distance from upper spindle face to work table	500mm
7	Maximum spindle load	200kg
8	Maximum load carrying capacity of worktable	1500kg
9	Power	4.0KVA
10	Maximum output current	50A
11	Maximum processing efficiency	≥400mm3/min
12	Minimum electrode loss	<0.2%
13	Optimum roughness	Ra≤0.4um
14	Display mode	Single axis CNC (industrial computer main board) LCD screen
15	Machine weight	2800kg
16	Machine tool dimensions	1550*1850*2550mm

ZNC-600 EDM Forming Machine Detailed technical parameters

Item	Description	Performance, function
1	Table size	1050*650mm
2	About the trip	600mm
3	Before and after the trip	300mm
4	Main shaft trip	500mm
5	nner diameter of oil tank	880*570*350mm
6	Distance from upper spindle face to work table	500mm
7	Maximum spindle load	200kg
8	Maximum load carrying capacity of worktable	2200kg
9	Power	4.0KVA
10	Maximum output current	50A
11	Maximum processing efficiency	≥400mm3/min
12	Minimum electrode loss	<0.2%
13	Optimum roughness	Ra≤0.4um
14	Display mode	Single axis CNC (industrial computer main board) LCD screen
15	Machine weight	3500kg
16	Machine tool dimensions	2150*1850*2550mm

Product Description
1,Conditions of use and usage of edM forming machine tools
Edm forming machine is used to process the workpiece in a certain medium by the electroerosion of the pulse discharge between the tool electrode and the workpiece electrode.Its primary condition: one is metal conductive body or semi-conductive body, two often used for the processing of the main blind hole this is the difference between electric spark forming machine and electric spark wire cutting machine
Edm can process various materials with high melting point, high hardness, high strength, high purity and high toughness, and its processing mechanism is completely different from the cutting method, which has the following characteristics:
1.1.1, pulse discharge energy density is high, easy to process with ordinary machining methods difficult to process or processing of special materials and complex shape of the workpiece.It is not affected by material hardness and thermal treatment.
1.1.2, the duration of pulse discharge is very short, the heat conduction and diffusion range generated by discharge is small, and the range of material affected by heat is small.
1.1.3, during processing, the tool electrode and workpiece material do not contact, the macroscopic force between the two is very small.The tool electrode material does not need to be harder than the workpiece material, so the tool electrode is easy to manufacture.
1.1.4, can reform the workpiece structure, simplify processing technology, improve the service life of the workpiece, reduce the labor intensity of workers
Supply List (configuration of each machine)

No.	Product Name	Specification	Quantity	note
1	(EDM600+ZNC-50B 1. Machine tool instruction manual and maintenance manual, (Computer interface is Chinese version) 2. Detailed packing list of machine tools (See technical Agreement for technical parameters)	EDM600+ZNC-50B	1
2	The host		1
	Working liquid tank		1
	Jig		1
	Power supply cabinet		1
	Grating system		1
	The toolkit		1
	Oil injection magnetic seat		2
	Ground floor mat iron		4
	Adjust the screw		4
	T slot nut		2
	stud		2
	Hexagon socket wrench		1
	Drill chuck		1
	Drill clamp wrench		1
	Circle electrode handle		1
	M6 electrode handle		1
	M8 electrode handle		1
	clamp		1
	Trapezoidal shim		1
	Fire extinguisher		1
	Put the wire		2
	The instructions		1
	The packing list		1
	Certificate of quality		1

Product Showcase
Product Applications
More Products

If you want to know more product details, please feel free to contact us!

CNC bench plasma cutting machine

Bench laser cutting machine

CNC EDM wire cutting machine

CNC Vertical Machining Center

Flat Bed CNC Lathe

Slant bed CNC lathe

Universal Engine Lathe

Heavy Duty Engine Lathe

bench lathe

Company Profile
Chizhou Jarry CNC Machinery Co., Ltd was established in July 2014.
We supply CNC-Lathe; CNC-Milling Machine; CNC Cutting Machine, CNC Spare Parts, CNC Accessories. We also supply other machinery for our clients all over the world. Annual sales is over ten million USD. Our machines has been exporting to Europe, Asia, Africa, South America, North AmericaAustralia and others, realiable after-selling serviceOur company has established perfect hassle-free service system in quick response, which covers pre-sales, sales and post-sales to providespecialized and standardized services in quick response for the customers and safeguard the rights and interestes of the customers.
Our company offers variety of CNC Machining Center, CNC Lathe and other machine tools which can meet your multifarious demands. We adhere to the management principles of "quality first, customer first and credit-based" since the establishment of the company and always do our best to satisfy potential needs of our customers. Our company is sincerely willing to cooperate with enterprises from all over the world in order to realize a win-win situation since the trend of economic globalization has developed with anirresistible force.
Certifications
Packaging & Shipping
FAQ
1. What is the payment Terms ?
A : T/T or L/C ,30% initial payment when order ,70% balance payment before shipment ;Irrevocable LC at sight .
When we receive the advance payment, we will start to make production.when the machine is ready , we will take pictures to you.after we got your balance payment. we will send the machine to you.
2. what is your company mainly produces ?
A : Our company is a professional machine tool manufacturer with many years of experience. The company mainly produces CNC-Lathe; CNC-Milling Machine; CNC Cutting Machine, CNC Spare Parts, CNC Accessories, etc...
3.When is the delivery time?
A: If the machine you will order is standard machine, we can ready the machine within 15days. if some special machines will be some longer. The ship time is about 30 days to Europe, America. If you are from Australia, or Asia, it will be shorter. You can place order according to delivery time and ship time.we will give you the answer accordingly.
4. What is your minimum order quantity and warranty?
A: MOQ is one set, and warranty is one year.but we will offer lifetime service for machine.
5. What is the packaging of the machine?
A: The standard packaging of the machine is wooden pallet with plastic film.
