Wood Saw Mill Machines Horizontal Sawmill Portable Sawmill with Trailer

Product Description

Product Description

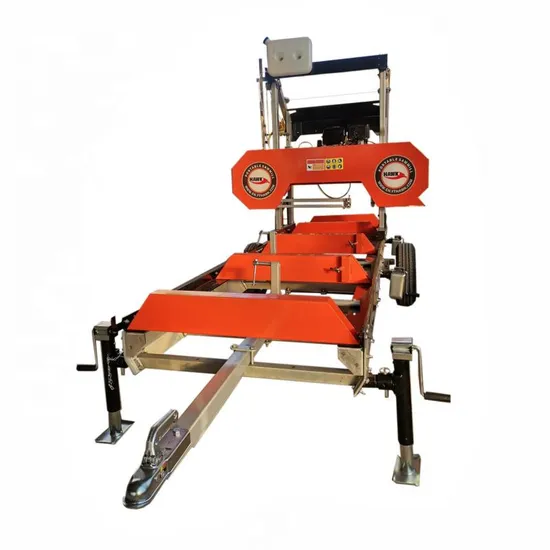

The HAWK sawmill can be fixed in a place or movable with the trailer.
The trailer length could be 4m or 6m.
With the log loading bracket, you can lift up the log from ground to the sawmill track easily.
The log cutting thickness can be adjustable as you need.
The max log cutting diameter could be 26inch or 31inch, you can choose the corresponding model.
The sawmill length can be customized as you need.
Specifications

Model	HS26G	HS31G	HS26E	HS31E
Weight	312kg	344kg	352kg	380kg
Displacement	301cc	420cc	400V 50HZ 3phase	400V 50HZ 3phase
Frame	4pcs	4pcs	4pcs	4pcs
Safe cutting Speed	13-15s/m	13-15s/m	13-15s/m	13-15s/m
Blade speed	17m/min	17m/min	17m/min	17m/min
Distance teeth	22mm (0.86")	22mm (0.86")	22mm (0.86")	22mm (0.86")
Blade Wheel Dia.	475 mm (18.7")	475 mm (18.7")	475 mm (18.7")	475 mm (18.7")
Cutting capacity	660*178*2794mm (26"*7"*110")	790*178*2794mm (31"*7"*110")	660*178*2794mm (26"*7"*110")	790*178*2794mm (31"*7"*110")
Blade size	3670*34*0.9mm (144"*1-1/4"*0.035")	3670*34*0.9mm (144"*1-1/4"*0.035")	3670*34*0.9 mm (144"*1.25"*0.035")	3670*34*0.9mm (144"*1-1/4"*0.035")
Power	Gasoline 9HP(LIFAN, Manual start)	Gasoline 15HP (LIFAN, Manual start)	Electric Motor 5.5KW	Electric Motor 7.5KW
Dimension	4064*1778*1800mm (160"*70"*71")	4064*1778*1800mm (160"*70"*71")	4064*1778*1800mm (160"*70"*71")	4064*1778*1800mm (160"*70"*71")

Model	HST4	HST6
Trailer Axle	50x50mm	50x50mm
Trailer Lights	LED light kit	LED light kit
Trailer leveling jacks	6pcs	8pcs
Trailer Ball Coupler	2 (50mm)	2 (50mm)
Finish	Galvanized	Galvanized
Weight	350/385kg	380/415kg
Trailer Size(L*W*H)	3970(+1000mm drawbar)x900x700mm	6000(+1000mm drawbar)x900x700mm

Detailed Photos
Advantage1.The machine has features of high cutting speed,high cutting rate,high quality of final product,great reduce the lost of sawdust.
2.It is simple installation, easy operation, labor saving , and high productivity.
3.simple , safe and pro-environment;
4.Automatic control the timber thickness, high-precision.
5.High cutting efficiency, smooth; high flatness of the cutting plate;
6.The thickness of processing wood can be adjusted according to your need
7.Not need the professional sawyers, the ordinary workers can operate the machine expertly.
Applications
Smooth Sawhead FeedGuide the sawhead through the cut with finger-tip pressure - allows you to judge the best speed for smooth cuts through
knots and denser core wood.Blade Lube SystemKeeps blade pitch-free in softwoods. Delivers water directly to the blade at the point of entry into the cut. Large custom-
molded water bottle with wide-mouth filling port for easy refilling.
Company Profile
Yantai Hawk Hydraulic Equipment Co., Ltd is a professional manufacturer which was found in 2012 has a lot of experience
in forestry machinery and excavator attachments researching & developing, producing and marketing. Our factory is located
in Yantai City, Shandong Province, Near to Qingdao port.
Main products includes sawmill, hydraulic breaker, post driver, pile hammer, tree shear, cone splitter, hydraulic pulveriser,
multifunction grapples, quick hitch couplers, ripper, etc. All products' quality are strictly under control from processing
to delivery. Equip with high-tech equipment and technology as well as scientific management system, our excellent staff
are ready to offer you superior products and service.
Our mission is: Quality first, Service foremost, and Innovation paramount.
Packaging & Shipping
FAQ
1. Are you factory or trading company?We have our own factory, mainly manufacture Forestry Machinery&Excavator Attachments, using "Self-produced
Self-marketing" business model, reducing the cost of intermediate links.2 .What's your company advantages?As the leading manufacturer of forest machines, we have exported to European market for more than ten years, familiar
with market and can recommend to clients right products.3. Can we buy one sample?Yes, one sample order is welcome. 4. What's your delivery time?After receiving your payment, we start to produce your order. It usually takes about 15-30 days depending on the products
you order.5. How do you control your quality?To guarantee high quality and efficient management, our whole manufacturing processes are under a very serious and
strict system, and we have passed ISO9001 quality management system certificate. All of our products are 100%
inspected before shipment6. Why choose US?A. Very competitive advantage products!B. Small order welcome!C. QC for each product before delivery7. What's your product warranty?The warranty time of the machine is one year. During this period, we will send you the replacement for the broken part
(not man made). To meet the every demand of customer is our goal. We are standing by for any question of customer.
We try to make our service fast, efficient and satisfied8. What's your company mainly exporting market?We mainly export to European, North American, Australia, English and Southeast Asia Market. Because of good quality
and service, we have establish good and long business relations with many clients. Welcome clients from all over the
world to visit our factory.9. If I need different measurements or weight, could you offer OEM service?Sure, we can provide OEM service, also we can make new mould for your product, attaching your name brand.
