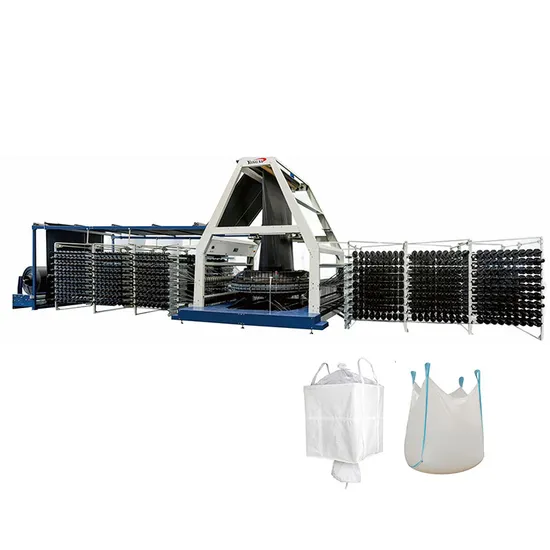

1 Ton 1.5 Ton Jumbo Bag Circular Loom Machine

US$26,500.00-28,500.00 1 Piece (MOQ)

Basic Info.

Model NO.
YX-FYB1850/8
Computerized
Computerized
Precision
High Precision
Certification
CE, ISO9001: 2000
Warranty
1 Year
Customized
Customized
Condition
New
After-sales Service
Video Technical Support
Model No.
Yx-Fyb1850/8
Product Name
Eight Shuttle Circular Loom
Working Width
1450-1850mm
Application
PP Woven Bag
Transport Package
Nude Package or Wooden Case
Specification
14500*3700*4500mm
Trademark
Yongxu
Origin
China
HS Code
8446219
Production Capacity
60-120 Meter/Hour

Packaging & Delivery

Package Size
230.00cm * 230.00cm * 330.00cm
Package Gross Weight
6000.000kg

Product Description

Product Description
Application
This series plastic circular loom is specially designed for the high quality wide tubular or flat fabric by PP and HDPE for jumbo bag, geotextile, tarpaulin and so on.
Technical Data
S/N. Items Parameters
1) Model YX-FYB1850/8 YX-FYB2100/8 YX-FYB2300/8
2) Shuttle 8 Shuttles 8 Shuttles 8 Shuttles
3) Folded width 1450-1850mm 1700-2100mm 1800-2200mm
4) Production speed 60-120 meter/hour,
depend on the final width of yarn.
60-120 meter/hour,
depend on the final width of yarn.
55-110 meter/hour,
depend on the final width of yarn.
5) Number Of tapes Max. 2304 spindles Max. 2880 spindles Max. 2880 spindles
6) Main motor power(kw) 7.5kw 7.5kw 7.5kw
7) Prime motor rotational speed(r/min) 20-85 20-85 20-60
8) Weft yarn density 32-64pcs/100mm 32-64pcs/100mm 32-64pcs/100mm
9) Counting clock Electronic counting meter Electronic counting meter Electronic counting meter
10) warp yarn diameter Max. φ140mm Max. φ140mm Max. φ140mm
11) Weft yarn diameter Max. φ105mm Max. φ105mm Max. φ105mm
12) Winders Motor 100kg.cm 100kg.cm 100kg.cm
13) Warp beam let-off device Initiative warp yarn let-off Initiative warp yarn let-off Initiative warp yarn let-off
14) Warp yarn broken control Automatic stop for warp breaking Automatic stop for warp breaking Automatic stop for warp breaking
15) Weft yarn broken control Automatic stop after weft breaking and weft completion Automatic stop after weft breaking and weft completion Automatic stop after weft breaking and weft completion
16) Winding width Winding width 1800mm Winding width 2100mm Winding width 2300mm
17) Winding diameter Max. 1100mm Max. 1200mm Max. 1200mm
18) Installing Dimensions
(L*W*H)
about 14500*3700*4500mm about 16200*3750*4500mm about 16200*3750*4500mm
19) Weight(kg) about 6000 about 7000 about 7000
20) Power distribution cabinet The whole system adopts PLC+ touch screen control. The whole machine is equipped with synchronous rise and fall speed linkage, emergency shutdown, and real-time adjustment and monitoring of all effective data. The whole system adopts PLC+ touch screen control. The whole machine is equipped with synchronous rise and fall speed linkage, emergency shutdown, and real-time adjustment and monitoring of all effective data. The whole system adopts PLC+ touch screen control. The whole machine is equipped with synchronous rise and fall speed linkage, emergency shutdown, and real-time adjustment and monitoring of all effective data.


Remark
* The data depends on weaving construction, size and weight of fabric, specification and quality of tape.
** Specification and dimensions are subject to change without prior notice.
*** Special specification and versions on request.
