Heavy Duty 5 Axis CNC Bridge Saw in America UK UAE

Product Description

Product Parameters

Model	ZLBS-600CNC/5A	ZLBS-600CNC/5+1A
Worktable size	L3500mm*W2000mm	L3500mm*W2000mm
Maximum Cutting Size	L3500mm*W2000mm*H150mm	L3500mm*W2000mm*H150mm
X.Y. Z-axis Transmission	X-axis adopts #30 Linear Guide Rail + helical rack and gear + Planetary reducer. Y-axis adopts #35 Linear Guide Rail + helical rack and gear + Planetary reducer. Z-axis adopts #35 Linear Guide Rail+ Ball screw+ Planetary reducer.	X-axis adopts #30 Linear Guide Rail + helical rack and gear + Planetary reducer. Y-axis adopts #35 Linear Guide Rail + helical rack and gear + Planetary reducer. Z-axis adopts #35 Linear Guide Rail+ Ball screw+ Planetary reducer.
C-axis	Head rotate 0°-360°, with Robot Reducer	Head rotate 0°-360°, with Robot Reducer
A-axis	Head tilt 0°-90° with Robot Reducer	Head tilt 0°-90° with Robot Reducer
Camera brand	Hikvison	Hikvison
Blade diameter	350mm-600mm	350mm-600mm
Main motor	self-developed 5-axis special motor 22KW(permanet magnet motor with frequency)	self-developed 5-axis special motor 22KW(permanet magnet motor with frequency)
Control center	Options: 1.Self-developed CNC system for 5 Axis Bridge Saw Machine 2.ESA System from Italy	Options: 1.Self-developed CNC system for 5 Axis Bridge Saw Machine 2.ESA System from Italy
Driving motor	1.5kw Servo motor YUHAI Or ESA (2 Servo Motors in Y-axis)	1.5kw Servo motor YUHAI Or ESA(2 Servo Motors in Y-axis)
Main motor RPM	6000rpm	6000rpm
Main Spindle type	Can be put a drill	Can be put a drill
Electric Spindle for Milling Work (Optional)	Without	* Type: electric spindle * Rotating speed: 0-24000 rpm * Power: 5.5kw
Total power	30kw	35kw
worktable flip	85°	85°
Water consumption	2m³/h	2m³/h
Total weight	6t	6t
With A Group of Clamping Gauge For Precise Milling Work(√) With a Camera-Photo Layout Function(√) Automatic thickness measuring, Automatic Tool Size Measuring (√) Automatic lubrication system: Easy to do maintenance (√) With Electric spindle, speed:24000rpm (√) With an industrial computer and a 17" color touch-screen. (√) With Suction Cups(√) Life-Time Software Updating(√) WiFi Control from Abroad: It can be connected to the internet through Wi-Fi and cell phone wireless sharing, etc. to realize man-machine interaction, remote monitoring and system updating.(√) 22-KW Permanent Magnet Motor(√)

Option: (System) 1. Self-developed CNC System with "Cut Cam" Software 2. ESA hardware with Pegasus software

Option: Chassis be hot-dip galvanized

Option: Add front sliding doors

Option: Worktable be faced with plastic plate and rubber

Product Description
New Design:
Classic Look:

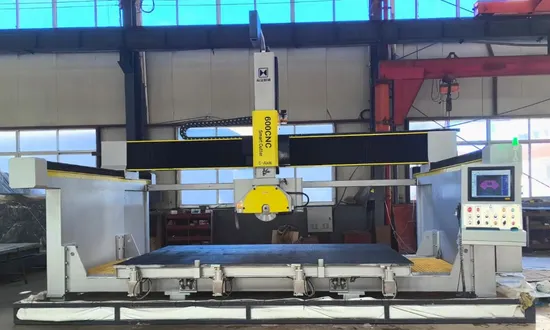

This is a heavy-duty 5 axis CNC bridge saw for Processing Granite, Marble. Artificial Stone, Sintered Stone, etc.
A Camera is equiped to position Plates automatically and help calculate the size of workpieces. The Machine Head can rotate 0~360°, Tilt 0~90°, enable Processing at various Angles and directions. It adopts CNC system, together with an industrial Computer, makes stone Production totally automatic. Operators can Cutting stone easily.
For each machine, we place the stone test machine in the factory to ensure that every detail is debugged to the best state and then package the factory. And after-sales service is quite easy to provide that our technician can help the operator by remote monitoring.
Option: CNC system or ESA hardware with Pegasus software from Italy.

Features

1. #35 Guide Rail


It is a heavy-duty machine.
It adopts #35 Guide Rail for Y axis and Z axis, enables production for maximum 15cm Granite slabs.
(For processing Thick&Hard Stone slabs, 35mm Guide Rail is a safer choice, which ensures the long lifetime of the machine. )
2. With A Group of Rotating Cylinders
With A Group of Rotating Cylinders to press piecework during milling work. Specially Designed by our factory to make Milling Work Accurate and precise.
3. Working Head can Tilt 0~90 degree and Rotate 0~360 degree.
The A axis can automatically rotate 0-90°, while the C axis can rotate up to 360°.
4. Worktable Turnover 85°
This worktable can be flipped over 85° to load slabs easily.
6. Suction Cups are Equipped
The machine has Suction Cups to move slabs automatically.If the blade-cutting path conflicts, the suction cups can help.
7. Four-Side Chamfering with Range 3500X 2000mm

This machine has excellent four-side chamfering function, with excellent chamfering range 3500x2000mm.

8. 17" Color Touch-Screen
This Machine has an industrial computer and a 17" color touch-screen.

9. CNC System and Built-in Library
The system has a built-in library of conventional-shaped drawings and also supports DXF format imports from designer or countertop measuring gauges.
10. With Automatic Tool Setting Gauge
An automatic tool setting gauge is equipped that automatically checks the blade.
11. 22-KW Permanent Magnet Motor
The (5+1)A type with a self-developed 22-KW permanent magnet motor, which can cut along with the thickness of the workpieces, automatically adjusting the output power, strength, is power-saving and environment-protective.
Application Pictures
Packaging & Shipping
Company Profile
ZL Machine was founded in 1993, and specializes in stone machine manufacture.
After more than 30 years' Development, we have become one of the most competitive enterprises in China. We have many Patents and have won the honors of "China Top Ten Enterprises (Stone Machinery)", "China AAA Grade Enterprise for Credit&Service (Stone Machinery)", "China Competitive Enterprises (Stone Machinery)", etc. And we have gained the quality certification of ISO9001, ISO2000, China Occupational Health and Safety, CE, etc.
Certifications

---
