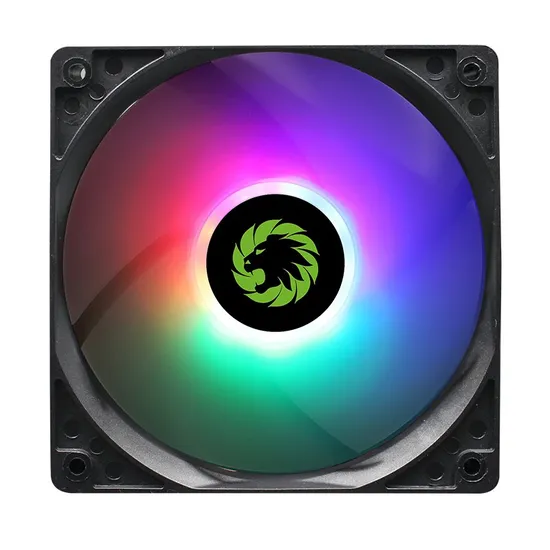

| GMX-AF12-X | |
| 1. GameMax brand on lighting ring | |
| 2. Silent and unique design ARGB case fan | |
| 3. The fan blade can be disassembled for easy cleaning of dust |
| 4. Design Wind pressure is large; suspended fan blade design, large air volume (fan blades are larger than traditional aperture fans) |
| 5. The sickle type design is matched with the floating fan blade, which increases the air intake side and can also enter the wind. The traditional fan can only enter the wind from the front.(GameMax patents) |
| 6. Ultra-thin design, 20% lower than conventional fans |
| 7. Lower noise design |
| | |
| Specification |
| Size: | 120x120x25mm |
| Rated voltage-Fan | 12V |
| Rated voltage-RGB LED | 5V |
| Rated current-Fan | 0.25A |
| Rated current-RGB LED | 0.5A(Max.) |
| Rotating speed | 1200+-10% RPM |
| Air volume | 36.8CFM |
| Static pressure | 2.18mm |
| Noise Level | 24.6 DBA |
| Connector | 3pin+ARGB 3pin |
| Heart | SS02 |
| Frame Technology | AAO |
| Patent No.: | 201830703598X |
| Connector Fan Power | Morex 4PIN+3PIN |
| Connector ARGB | - |
