Hot Model Residential Building Office Building Elevator Available Machine Passenger Home Lift

Product Description

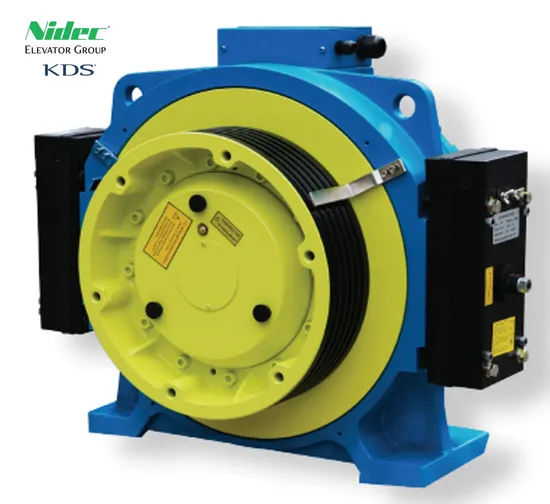

Product Description Nidec Kds Traction Machine: WJC Series
Magnetic synchronous gearless traction machine is composed of magnetic synchronous motor, sheave, and break system. It operates and changes speed through a closed-loop control by an Encoder. Compared with traditional traction machine, it features with higher efficiency, lower starting current, bigger starting torque, and smoother operation. As magnet materials are used, it is small in size and light in weight; Through a gearless reducer, it operates with lower noise and higher reliability. Detailed Photos

Send an inquiry

Product Parameters

	Capacity	Elevator Speed	Rated Output	Rated current	Sheave Diameter	Ropes	Groove Dist	Roping	Shaft Load	Weight
Model	kg	m/s	kW	A	mm		mm		kg	kg
WJC-320-100	320	1	2.1	6.5	330	4-Φ8	12	2:1	1500	195
WJC-450-100	450	1	3.0	8.5	330	4-Φ8	12	2:1	1500	195
WJC-450-150	450	1.5	4.5	13.0	330	4-Φ8	12	2:1	1500	195
WJC-450-160	450	1.6	4.8	13.0	330	4-Φ8	12	2:1	1500	195
WJC-450-175	450	1.75	5.3	13.0	330	4-Φ8	12	2:1	1500	195
WJC-630-100	630	1	4.3	11.0	400	4-Φ10	16	2:1	2,000	260
WJC-630-150	630	1.5	6.4	16.5	400	4-Φ10	16	2:1	2,000	260
WJC-630-160	630	1.6	6.8	16.5	400	4-Φ10	16	2:1	2,000	260
WJC-630-175	630	1.75	7.4	16.5	400	4-Φ10	16	2:1	2,000	260
WJC-800-100	800	1	5.4	12.0	400	5-Φ10	16	2:1	3,000	320
WJC-800-150	800	1.5	8.1	20.0	400	5-Φ10	16	2:1	3,000	320
WJC-800-160	800	1.6	8.6	20.0	400	5-Φ10	16	2:1	3,000	320
WJC-800-175	800	1.75	9.6	20.0	400	5-Φ10	16	2:1	3,000	320
WJC-800-200	800	2.0	11.0	25.0	400	5-Φ10	16	2:1	3,000	320
WJC-800-250	800	2.5	13.8	30.0	400	5-Φ10	16	2:1	3,000	320
WJC-1000-100	1,000	1	6.4	15.0	400	5-Φ10	16	2:1	3,000	320
WJC-1000-150	1,000	1.5	10.0	26.0	400	5-Φ10	16	2:1	3,000	320
WJC-1000-160	1,000	1.6	10.7	26.0	400	5-Φ10	16	2:1	3,000	320
WJC-1000-175	1,000	1.75	11.7	26.0	400	5-Φ10	16	2:1	3,000	320
WJC-1000-200	1,000	2.0	13.3	30.0	400	6-Φ10	16	2:1	3,000	350
WJC-1000-250	1,000	2.5	16.6	36.0	400	6-Φ10	16	2:1	3,000	350
WJC-1150-100	1,150	1	7.6	18.0	400	6-Φ10	16	2:1	3,500	370
WJC-1150-150	1,150	1.5	11.4	29.5	400	6-Φ10	16	2:1	3,500	370
WJC-1150-160	1,150	1.6	12.2	29.5	400	6-Φ10	16	2:1	3,500	370
WJC-1150-175	1,150	1.75	13.3	29.5	400	6-Φ10	16	2:1	3,500	370
WJC-1150-200	1,150	2	15.3	33.5	400	6-Φ10	16	2:1	3,500	370
WJC-1150-250	1,150	2.5	19.1	41.5	400	6-Φ10	16	2:1	3,500	370
WJC-1250-100	1,250	1	8.3	19.0	400	6-Φ10	16	2:1	3,500	370
WJC-1250-150	1,250	1.5	12.4	32.0	400	6-Φ10	16	2:1	3,500	370
WJC-1250-160	1,250	1.6	13.3	32.0	400	6-Φ10	16	2:1	3,500	370
WJC-1250-175	1,250	1.75	14.5	32.0	400	6-Φ10	16	2:1	3,500	370
