US$10,000.00-40,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Process Usage
Metal-Cutting CNC Machine Tools
Movement Method
Linear Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance Classification
Economical CNC Machine Tools
Certification
CE, ISO 9001
Swing Over Cross Slide
190mm
Distance Between Centers
370mm
Machine Accuracy
0.08mm ,0.03mm
Transport Package
Plywood Case
Product Description

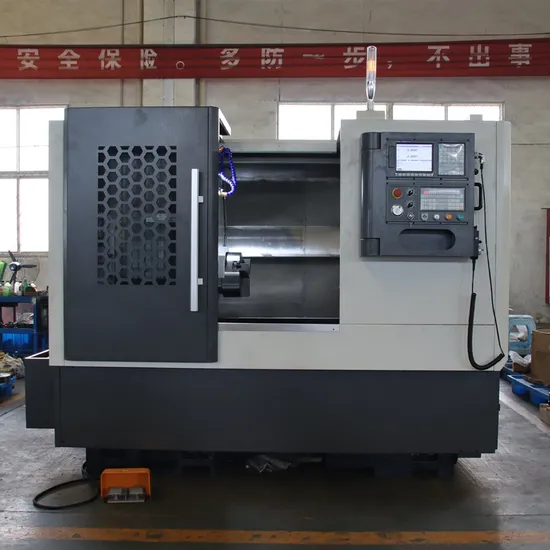

SLANT BED LATHE MACHINE
1. 45-degrees slant bed, easy and fast for chips convey
2. one-piece casting (master-piece) integral bed, torsional strength and flexural rigidity is obviously increased
3. high rigid and high precision independent spindle unit, increase thermal stability and precision.
4.TAIWAN Hiwin linear guide way and ball screw, hardness over 58 degrees, ensure highest speed, highest machining precision and excellent dynamic performance.
5.hollowed hydraulic chuck and hollowed oil cylinder
6.Particularly designed heavier loading bottom base, widened machine bed, strengthened plate ensure to high strength machining strict requirements.
SPECIFICATIONS:
| MODELS | TCK36 |
| Capability | Chuck (optional) | 6" |
| Collet | CL-36A5 (3-36mm) |
| Max. swing over bed | 360mm |
| Max. swing over carriage | 110mm |
| Machine accuracy | X/Z position accuracy | 0.008mm |
| X/Z repeatability | 0.003mm |
| X/Z axes | X/Z travel | 280/250mm |
| X/Z rapid feeding speed | 15/20 m/min |
| X/Z motor torque | 4Nm |
| X/Z mini. setting unit | 0.001mm |
| X/Z guide way | Taiwan Hiwin linear |
| Spindle | Max. speed | 3000rpm |
| Spindle bore | 38mm |
| Motor power | 4 KW |
| max. diameter of the bar | 32mm |
| Distance from tool to spindle center | 16mm |
| Tool | Tool quantity | 4-tool gang type |
| Tool bar section size | 16*16mm |
| Net weight | 2200 kg |
| Dimension | 2000*1400*1580mm |
| SLANT BED AUTOMATIC LATHE | TCK46 |
| Capability | Chuck at optional | 8" |
| Collet | CL-42A5(3-42mm) |
| Max. swing dia. over bed | 460mm |
| Max. swing dia. over cross slide | 140mm |
| Machine accuracy | X/Z position accuracy | 0.005mm |
| X/Z repeatability | 0.003mm |
| X/Z axes | X/Z travel | 380/350mm |
| X/Z rapid feeding speed | 20/20 m/min |
| X/Z motor torque | 6Nw |
| X/Z mini. setting unit | 0.001mm |
| X/Z guide way | Taiwan Hiwin linear guide |
| Spindle | Max. speed | 3000rpm |
| Go-ball dia. of spindle | 43rpm |
| Motor power | 5.5Kw |
| Inter dia. of spindle draw pipe | 43mm |
| Distance from tool to spindle center | 20mm |
| Tool | Tool quantity | 4-piece raw tool holder |
| Tool bar section size | 20*20mm |
| Net weight | | 2600kg |
| Model | Unit | TCK50A |
| Swing over bed | mm | 500 |
| Swing over cross slide | mm | 190 |
| Distance between centers | mm | 370 |
| Spindle bore | mm | 65 |
| Bar capacity | mm | 45 |
| Spindle nose type | - | A2-6 |
| Spindle speed steps | - | Stepless |
| Spindle speed range | rpm | 3500 |
| Turret/tool post | - | 8 Hydraulic turret |
| Tool size | mm | 25 x 25 |
| X axis travel | mm | 240 |
| Z axis travel | mm | 300 |
| X axis rapid traverse | mm/min | 18000 |
| Z axis rapid traverse | mm/min | 18000 |
| Main spindle motor | kw | 11 |
| Tailstock quill diameter | mm | 70 |
| Tailstock quill taper | - | MT4 |
| Tailstock quill travel | mm | 80 |
| Tailstock travel | mm | 200 |
| Guide rail type | - | Slant bed linear rail |
| Machine weight | kg | 2900 |
| Overall dimension | mm | 2500x1700x1750 |
>>
