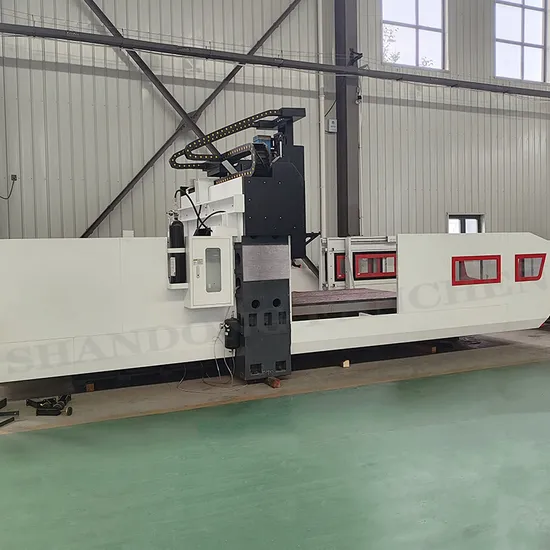

Five-Axis Gantry CNC Machining Center Gmb6018 6022 6032 6000m/Min

US$318,000.00-860,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
GMB6018
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools
Movement Method
Linear Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance Classification
Five-Axis Gantry Machining Center
Certification
GS, CE, ISO 9001
Condition
New
Bed Dimension
6000/1800mm
Tworkbench T-Type Groove
9-22-180mm
Maximum Load Bearing
15000kg
Three Axis Itinerary
6000/1800/1000mm
Longmen Width
2200mm
Main Shaft Speed
6000rpm
Spindle Specification
Bt50
Triaxial Cutting Feed Speed
10/6000m/Min
The Three Axes Move Quickly
6/8/8mm/Min
Repeat Positioning Accuracy
0.01mm
Overall Dimension
13000×5500×6000
Transport Package
Xyloid
Specification
13000/5500/6000mm
Trademark
FANCHEN
Origin
China
Production Capacity
100

Packaging & Delivery

Package Size
1300.00cm * 550.00cm * 600.00cm
Package Gross Weight
15000.000kg

Product Description

specifications;norms; unit modelGMB6018
operating platform
bed dimension mm 6000×1800
TWorkbench T-type groove mm 9-22×180
Maximum load bearing kg 15000
Three axis itinerary mm 6000×1800×1000
Spindle nose end to the countertop mm 250-1250
Longmen width mm 2200
chief axis
main shaft speed rpm 6000
Spindle specification BT50
Spindle diameter mm ∅200
Spindle transmission mode Belt type transmission
feed
Triaxial cutting feed speed m/min 10-6000
The three axes move quickly mm/min 6/8/8
precision
positioning accuracy mm ±0.005/300
Repeat positioning accuracy mm 0.01
Motor power
Spindle motor power kw 26
x/y/zMotor power kw 9/7/7
else
system Siemens
Overall dimension mm 13000×5500×6000

FAQ

1.:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
