Hbts80-16-110 Concrete Machine for Reliable Construction Projects

Product Description

Product Description

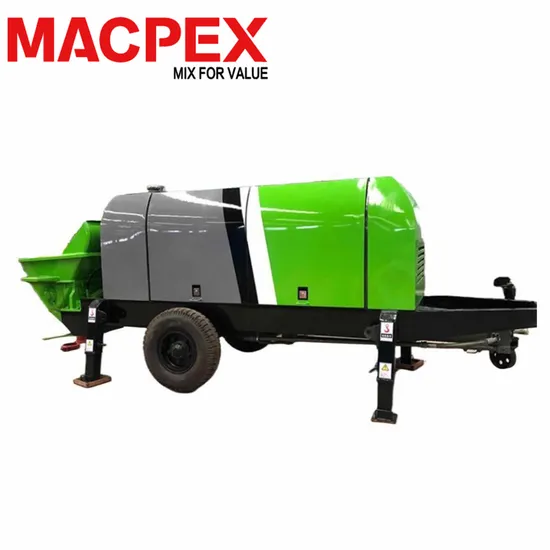

Introducing the HBTS80-16-110 Concrete Machine for Reliable Construction Projects
Experience smooth and efficient construction with the HBTS80-16-110 Concrete Machine from SHANDONG MACPEX MACHINERY EQUIPMENT CO., LTD. This high-quality and durable concrete pump is designed to meet the demands of reliable construction projects.
Key Features:
Electrical System: The entire machine is PLC programmable and controlled by a computer, ensuring optimized design and simple operation. It also comes with a wireless remote control for easy remote operation.
Pumping System: With dual cylinder full hydraulic pumping, this machine improves work efficiency and reduces failure rate.
S-pipe Distribution Valve: Equipped with a floating wear-resistant ring, this patented valve automatically compensates for wear, ensuring good sealing and a reliable structure. It offers two working modes for different needs.
Reversing System: The electric and hydraulic control for reversing provides sensitive response and good stability.
High Outlet Pressure: This machine can reach horizontal conveying distances of 400-500 meters and vertical conveying distances of 150-180 meters, making it suitable for high-rise buildings and long-distance construction.
Cooling System: The hydraulic oil cooling system features high cooling power, eliminating the need for water sources and making construction convenient and equipment easy to move.
Hydraulic Oil Circuit: With an open hydraulic system, the reversing speed is improved, resulting in higher efficiency.
Anti Pump Function: The automatic pressure protection reduces pipeline blockage, improving work efficiency and extending the service life of pipelines.
Hydraulic Oil Tank: The large capacity liquid accumulation ensures smooth operation.
With the HBTS80-16-110 Concrete Machine, you can rely on advanced concrete technology and versatile construction equipment to achieve your construction goals. Whether you need to pour concrete into high-rise buildings or cover long distances, this efficient and heavy-duty concrete pump is the perfect solution.
Choose SHANDONG MACPEX MACHINERY EQUIPMENT CO., LTD. as your trusted concrete machinery supplier. Contact us today for concrete pump sales, rentals, and reliable construction solutions.
Detailed Photos
Product Parameters

Diesel Concrete pump		MD20-08-40R	MD30-10-48R	MD40-11-60R	MD50-13-66R	MD60-13-90R	MD60-16-120R	MD80-13-120R	MD80-16-129R	MD90-16-176R
Theo conveying capacity (m3/h)	high pressure	12	16	19	22	29	41	48	45	56
	low pressure	21	30	43	50	58	62	80	76	94
Theo conveying pressure (MPa)	high pressure	8	9.5	11	13	13	16	13	16	16
	low pressure	4.2	4.5	5.3	6.2	6.4	9.2	6.4	9.2	9.2
Conveying height (m)	level	350	400	450	550	550	650	550	650	650
	vertical	110	130	150	180	180	220	180	220	220
Rated power of the main power system (Kw)		39.6	56	66	82	112	120	120	129	176
Diesel engine fuel consumption (L/h)		5.8	8.3	10	12.5	15.8	19.5	19.5	21	28
Distribution valve form		S valve	S valve	S valve	S valve	S valve	S valve	S valve	S valve	S valve
Distribution valve form		20/25	25/30	25/30/40	25/30/40	40/50	40/50	40/50	40/50	40/50
Concrete slump (mm)		100-230	100-230	100-230	100-230	100-230	100-230	100-230	100-230	100-230
Power type		Diesel	Diesel	Diesel	Diesel	Diesel	Diesel	Diesel	Diesel	Diesel
Loading volume (m3)		0.4	0.4	0.5	0.5	0.6	0.6	0.6	0.6	0.6
Loading height (mm)		1200	1180	1300	1350	1400	1400	1400	1400	1400
Weight		2500	3100	3360	4000	4800	6000	6600	6600	6800
Dimensions(mm)		4300x1670x1680	4300x1670x1680	4850x1670x2070	5000x1670x2070	5465X1850X1850	6500x2160x2600	6500x2230x2600	6500x2230x2600	6500x2230x2600

Electrical Concrete pump		ME15-13-30		ME30-08-37		ME50-13-55		ME60-16-90		ME80-16-110
Theo conveying capacity (m3/h)	high pressure	7		13		22		37		47.5
	low pressure	15		26		46		63		78
Theo conveying pressure (MPa)	high pressure	13		9.5		13		16		16
	low pressure	6		4.5		6.2		9.2		9.2
Conveying height (m)	level	550		400		550		650		650
	vertical	180		130		180		220		220
Rated power of the main power system (Kw)		30		37		55		90		110
Distribution valve form		S valve		S valve		S valve		S valve		S valve
Distribution valve form		20/25		25/30		25/30/40		40/50		40/50
Concrete slump (mm)		100-230		100-230		100-230		100-230		100-230
Power type		Motor		Motor		Motor		Motor		Motor
Loading volume (m3)		0.34		0.4		0.5		0.6		0.6
Loading height (mm)		1050		1180		1350		1400		1400
Weight		1480		2200		3200		5200		5600
Dimensions(mm)		3380×1270×1450		3770×1420×1620		4300×1670×1680		6200×1882×1965		6200×1882×1965
