200 Ton Auto Injection Moulding Machine 5 Gallon Pet Preform/Tube Making Machine

Product Description

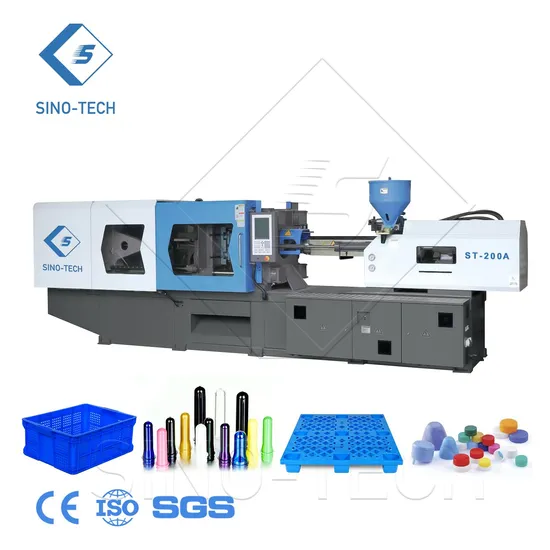

200 Ton Auto Injection Moulding Machine 5 gallon Pet Preform/Tube Making Machine
Product Description
SINO-TECH ST-200SEIll injection molding machine is designed for plastic dustbin, chairs, car bump pallet etc. It is with demoulding linkage which shorten the plastic parts cycle time. ST-200SEIll with high speed, stable performance and it is energy-saving. Our customers can get higher production with same labor and cost.
Main Features1. 30% higher energy saving than using traditional variable pump.
2. Stable and smooth movement supported by AC servo motor.
3.Effective reduction of energy consumption due to reduced oil.and cooling water attained by hydraulic system.
4. High performance European B&R control system.We are professional plastic injection molding machine manufacturer for all kinds of plastic products, Clamping force from 70 to 1600Ton, injection weight from 50 to 10000g. Also we have CE and ISO certification.
Product Parameters

Item	Unit	200SElll
Screw diameter	mm	45	50	60
Theoretical shot volume	cc	398	491	707
Shot weight (PS)	g	362	447	643
Shot weight (PS)	oz	12.8	15.8	22.7
Length/Diameter ratio	L/D	24	21.6	18
Injection pressure	MPa	219	177	123
Injection rate	cm³/sec	150	185	266
Injection stroke	mm	250
Max. Screw speed	rpm	185
Plasticizing capacity (PS)	g/s	22.5	28	34.2
Injection unit force	Ton	9.1
Carriage stroke	mm	350
Clamping force	Ton	200
Max. daylight	mm	1090
Clamping stroke	mm	540
Distance btwn. Tie bars	mm	535*535
Min mould dimension	mm	370*370
Mould thickness range	mm	175-550
Ejector force	Ton	7.7
Ejector stroke	mm	150
No. of ejector pins	unit	9
Max. motor power	kW	16.4
System pressure	MPa	17.5
Hydraulic pump capacity	L/min	112.5
No. of heater zones	unit	4+1+1
Heater input power	kW	14.25
Ultimate capacity	kw	31.65
Current	A	43.3
Net weight	Ton	6.97
Oil filling capacity	L	360

Seller Recommendation

Detailed Photos
Application
Company Profile

FAQ
1. who are we?We are based in Jiangsu, China, start from 2011,sell to North America(30.00%),South America(20.00%),Western Europe(16.00%),Oceania(10.00%),Mid East(10.00%),Eastern Europe(5.00%),Southeast Asia(5.00%),Africa(4.00%). There are total about 5-10 people in our office.2. how can we guarantee quality?Always a pre-production sample before mass production;Always final Inspection before shipment;3.what can you buy from us?Extrusion Blow Molding Machine,Pet Blow Molding Machine,IBC Cage Production Line,Plastic Extrusion Line,Waste Plastic Recycling And Pelletizing Line4. why should you buy from us not from other suppliers?Our company have the strict system from the material purchase,machine part processing and inspect. We have the detailed Assemble prcess according to the machine Assemble structure. We test not one time before the machine delivery to the customer factory.5. what services can we provide?Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery;Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian

---
