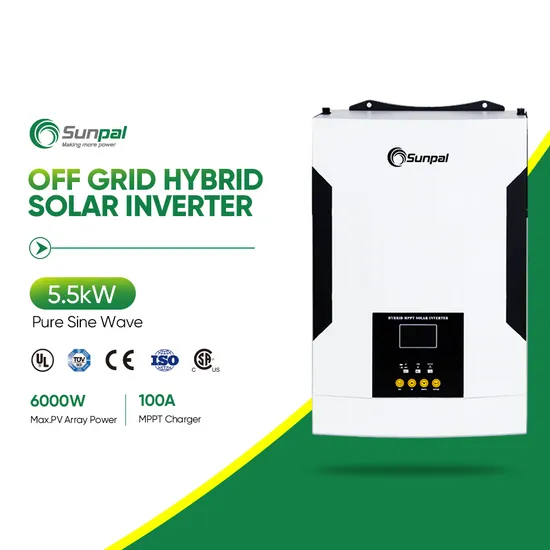

5kw 5kVA 48V Solar Hybrid Inverter off Grid Built-in MPPT Charge Controller Inverter

Product Description

Product Description
Off Grid Inverter Block Diagram
Technical Datasheet

Model	SUNON PRO 3.5K	SUNON PRO 5.5K
The rated power	3500VA/3500W	5500VA/5500W
	INPUT
Voltage	230 VAC
Selectable Voltage Range	170-280VAC(UPS), 90-280VAC(Appliances)
Frequnecy Range	50Hz/60Hz (Auto sensing)
	OUTPUT
AC Voltage Regulation (Batt. Model)	230VAC + 5%
Surge Power	7000VA	11000VA
Efficiency(Peak)	>90%
Transfer Time	10MS(UPS),20MS(Appliances)
Wave form	Pure sine wave
No load current	1.0A	1.1A
	BATTERY
Battery voltage	24VDC	48VDC
Low battery alarming voltage	22.0VDC	44.0VDC
Low battery cut off protection voltage	21VDC	42VDC
Low battery recovery voltage	23.0VDC	46.0VDC
Floating Charge Voltage	27VDC	54VDC
Overcharge Protection	23VDC	64VDC
	MPPT SOLAR CHARGER & AC CHARGER
Maximum PV Array Power	5000W	6000W
MPPT Range at Operation Vol	120-450VDC
Maximum PV Array Open Circuit Vol.	500VDC
Number of MPPT trackers / Max output current	100A
Maximum AC Charge Current	60A
Maxmum Charge Current	100A
Maxmum Efficiency	98%
	BEST PANEL CONFIGUTATION
Best Panel configuration	300Wp*9pcs*36V(2700Wp)*2Parallel	330Wp*9pcs*36V(2970Wp)*2Parallel
	PHYSICAL
Products Dimension, D*W*H(mm)	481mm*313mm*117mm	481mm*313mm*117mm
Packing size, D*W*H(mm)	543mm*394mm*204mm	543mm*394mm*204mm
Net Weight (kgs)	9.8KG	10.5KG
G.W. kg	11KG	11.7KG

Detailed Photos
Packing & Delivery
Our Factory
Project Case

Our Company
Sunpal Marketing Department
FAQ
1. who are we? We are based in Anhui, China, start from 2022,sell to North America(20.00%),Western Europe(12.00%),Southern Europe(10.00%),Southeast Asia(9.00%),South America(7.00%),Eastern Europe(7.00%),Central America(6.00%),Eastern Asia(6.00%),Northern Europe(6.00%),Mid East(5.00%),Oceania(4.00%),Africa(4.00%),South Asia(4.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality? Always a pre-production sample before mass production; Always final Inspection before shipment; 3.what can you buy from us? Solar Panel,Solar Inverter,Solar System,Solar Batteries,Energy Storage System 4. why should you buy from us not from other suppliers? With over 15 years of combined solar energy experience, Sunpal Power continues to be part of the renewable energy transition by helping you harvest clean energy at any given location in the world. 5. what services can we provide? Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA,DDP,DDU,Express Delivery; Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF; Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash; Language Spoken:Chinese,Spanish,French

---
