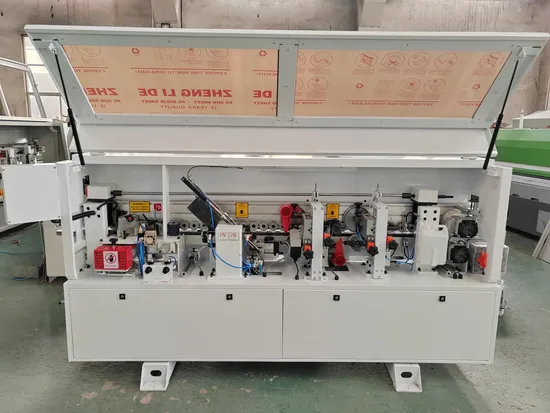

Woodworking Automatic Wood Board MDF Melamine Veneer PVC Pre Milling Edge Banding Machine Price with Trimmer

Product Description

Product Function

5 function edge bander edging banding machine
This machine is suitable for straight edge banding and trimming of MDF, Special designed folding touch panel and shorter length 2900 mm ,suitable for export.particleboard, solid wood board, particleboard, polymer door board, plywood and other boards. Functions: preheating, gluing, trimming, scraping, polishing, etc. The edging is smooth and the edging line is straight. This machine is stable and reliable, durable, and the price is favorable. Especially suitable for large and medium-sized furniture production enterprises.

Product Specification

Model	zyyexport
Panel Thickness	10-55mm
Edge Band Thickness	0.4-3mm
Panel Width	≥60mm
Panel Length	≥150mm
Feeding Speed	High/Middle/Low
Working Pressure	0.6Mpa
Voltage	380V/50HZ/3PH
Glue motor	0.37kw
End cutting motor	0.55kw*2
Fine trimming motor	0.55kw*2
Buffing motor	0.18kw*2
Conveyor motor	0.75kw
Dimension	2900mm*600mm*1320mm
Weight	630Kg

Detail Photos

Related products

Certificate & Factory

Warrenty and After Service

1.One year guarantee from the delivery date of this machine under the normal operation of one shift per day
2.We will be responsible for the maintenance of damaged parts which is under normalsituation during warranty period, and all the round -trip courier transportation cost of damaged/repaired replacement parts in warranty period should be bornd by the buyer.Wearing parts are not included.
3.24 Hour technicial support by email or calling
User-friendly Englishi manual for machine using and maintaining.

---
