Sts DIN Rail Single Phase Prepaid Electricity Meter with Ciu

US$35.00
50-99 Pieces
US$27.00
100-999 Pieces
US$26.00
1,000-9,999 Pieces
US$25.00
10,000+ Pieces

Basic Info.

Model NO.
DDSY395
Display
Digital
Installation
Direct Connected
Usage
Multi-Functional Energy Meter, Watt-Hour Meter, Meter for Industry and Home Use, Standard Electric Energy Meter, Prepayment Meter, Reactive Energy Meter, Multi-rate Watt-hour Meters, Maximum Demand Meter, Sts Meter
Electric Equipment
Single-phase
Theory
Electronic Meter
Power Meter Connection
Terminal
Measured Signal
Pulse Peak
Type
Energy Meter
Certification
ISO
Customized
Customized
Color
Gray
Transport Package
Carton Packing
Specification
5(80)A
Trademark
SANFRAN
Origin
China
HS Code
9028301300
Production Capacity
500000PCS/Month

Product Description

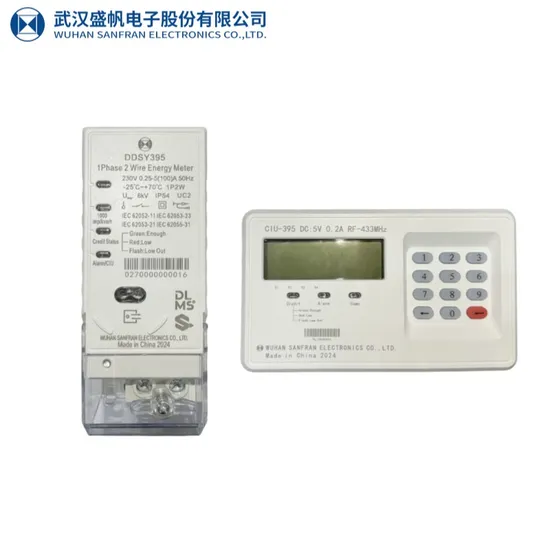

Single Phase Keypad Prepaid Energy Meter
DDSY395 Single phase keypad prepaid energy meter is a keypad type, automatically connection or disconnection prepaid electricity meter. It can be top up with SanfranPay vending software directly and communicate with AMI system via LORA-RF or PLC module. This meter is comply with STS standard, can be widely used for counting the electricity consumption of users over a period of time.
Functions and Features:
★Meter recharge by inputting TOKEN ★Utilities can set TOU price into meter on request
★Ingress protection IP54 waterproof ★Anti-tamper magnetic field protection
★Up to 8 years battery life ★MD(maximum demand measurement)
★Remote connection/disconnection ★Low credit alarm
★Real-time clock ★Overdraft collection
★Check data by inputting the short code ☆LORA-RF communication
★ Basic features ☆ Extended features
Specification:
Electrical Nominal Voltage 230V
Working Voltage Range 70%~120%Un
Active Energy Constant 1000imp/kWh
Power Consumption in Voltage Circuit <2W <8VA
Power Consumption in Current Circuit <1VA
Operation Temperature Range -25ºC-70ºC
Storage Temperature Range -40ºC-85ºC
Electric Magnetic Compatibility
 AC Insulation Strength 4kV at 50Hz during 1min
Impulse voltage 1.2/50 us mains connections 8kV
Electrostatic Discharges Contact discharge 8kV
Air discharge 16kV
Electromagnetic RF Field 27MHz-500MHz 10V/m
100KHz-1GHz 30V/m
Fast transient burst test 4kV
Protection Class II

Parameters:
Model DDSY395
Current(Imax) 5(80)A
Accuracy class 1.0
