China Manufacturer Dx0810 Face Milling Machine

Product Description

China Manufacturer DX0810 Face Milling Machine

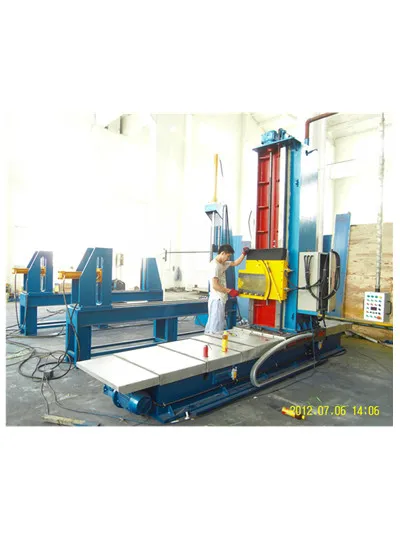

The face milling machine consists of milling and cutting head,elevator column,work table,lathe bed,mechanical feeding system,electrical control system,rail protection device,tools,etc.
This machine is used yo mill the end face of Box-beam and H-beam,and the degree of milling head can be adjusted manually in vertical direction to bevel the end face.The hydraulic support rack for choice can fix the beam and is open top,which is easy for hoisting.
Main technical parameter

Model	DX-0810	DX-0812	DX-1212	DX-1215	DX-1520	DX-2020	DX-2025	DX-2040	DX-3060
End-face Machining rage(mm)	800*1000	800*1000	1200*1200	1200*1500	1500*2000	2000*2000	2000*2500	2000*4000	3000*6000
Horizontal milling speed(mm/min)	50-440	50-440	50-500
Vertical milling speed (mm/min)	22-550	22-550	22-600
Milling angle(°)	0-45
Milling head specifications	TX25A		TX32A				TX40A		TX50A
cutter rotational speed(rpm)	125-1420		125-1440				1440		1460
Applicable cutter diameter(mm)	100-160		125-250				160-320		200-400

Delivery:
Our services:
1,Customer first
2,Sincere cooperation
3,Mutually beneficial
4,Joint development
Certification:
Company information:
Our company is a high-tech company,which specialize in auto welding equipment and H-beam production line.The products are applied to construction industry,such as pressure vessel,oil and chemical,power station,heavy duty mechanical equipment,ship,steel struvture equipment and so on.And we also can design special equipments according to clients' requirement.The products are sold at home and abroad,like southeastern Asia,Middle East,Europe and America etc.
FAQ
Customer: Can your machine or other products be customized?
we: Yes,we are an professional manufacturer who specializes in welding equipment about 15 years old,we have a strong design team ,so any conventional products can be customized
Customer: What about the transportion?
we: Usually we take seaway ,cause its more convenient and cheaper for big machine,of course ,if it is allowed ,we also can take train ,its according to real condition.
Customer: What about the after-sale service?
we: We provide 12 months quality warranty after dispatch, and some easy abrasion spares of equipment for free. We also provide a long-term free technical advisory services and technical consults service. We can also provide installation and training for value.
Customer: When we receive your machine ,is there any other Accessories we will get?
We: Yes,some easy abrasion spare parts will be provided free in case when some small problems happen

---
