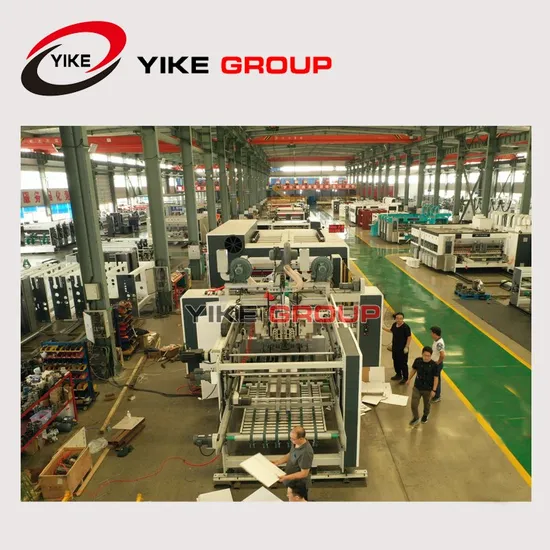

Corrugated Cardboard Carton Printer Slotter Die-Cutter and Folder Gluer in Line

Product Description

3 Layer Corrugated Box Flexo Printer Slotter and Folding Gluer

YKL- 1228 TOP PRINTER BOX LINE
Wall board thickness	60mm
Gear thickness	50mm
Max Machine Speed (pcs/min)	200
Max. Feeding Size (mm)	1200×2800
Max printing/working size (mm)	1200x2500
Min. Feeding Size (mm)	400x900
Skip-feeding Size (mm)	1400×2400
Standard Plate Thickness (mm)	7.2mm
Suit corrugated thickness	2-11mm
Max slotter depth (mm)	300
Print precision (mm)	±0.3
Slot precision (mm)	±1.0
Die cut precision (mm)	±1.0

Lead-edge Feeding System 1. Can measure the corrugated cardboard thickness, can adjustment feeding gap automatic 2. 7.5KW high pressure centrifugal fans, according to the cardboard warping degree of frequency control pressure, to ensure warp
cardboard or thin cardboard high-speed accurate transmission. 3. Left and right side baffle position electrically adjustable, screw-driven.and can remember by computer.
Printer Unit
Printing Roller 1. With printing plate, outer diameter φ300mm 2. High quality steel production, surface grinded, hard chromium-plated. Static balance adjustment, stable operation, suitable for high speed running 3. Roller horizontal direction and circumferential direction with datum line, convenient for align plate 4. Fixed coil axis, suitable for standard hanging slats, realize rapid change plate 5. Electric 360° adjust printing roller, automatic digital display adjustment, remember store digital. 6. Installed with foot switch to control plate roller reversing, convenient change plate 7. Auto-zero function, order memory. 8. Printing roller plate-change and fix-plate function. 9. Printing roll axial is adjusted left and right by manual, maximum movement left and right 10mm,auto-zero instruction.
Slotting Unit (DOUBLE ROLLER TYPE)
1. Angle cutter made by ITALY model, cutting ring use Rubber materils
2. Computer auto control cardboard size by Linear guideway 3. 6 shaft with rubber pre-creasing , creasing , slotter 4. The first pressure line round, after preloading cardboard not easily crush 5. The above press round Urethane appearance package, will not damage the cardboard 6. The slotter knife stock use traverse mechanism, screw with linear guide, to move more flexible and precise 7. Slotting phase and box height, computer and electric digital control
Die-cutting Unit
1. Rubber roller mechanical spiral commutation 40mm move about horizontal structure 2. Die-cutter phase, computer and electric digital control 3. Horizontal phase, computer and electric digital control, range ±5mm 4. Rubber roller and die roller gap use computer and electric digital control, 5. Adjust the transfer roller use computer and electric digital control, 6. The rubber roller compensated by motor-driven,control the speed of thr rubber roller, range ±3mm 7. Rubber roller hsiuping cutting structure, keep rubber surface roughness
FOLDER GLUER
1.Folding side members extremely strong 2.Folding section boxes of great length 3.Independent drive with AC motor 4.Folding beams extremely strong and free of bending and vibration 5.Chromed shafts 6.Safety guards according to "CE" standards 7.Powered positioning folding and gluing beams 8.Long section folding belts driven on grooved pulleys

---
