Product Description
Product Description

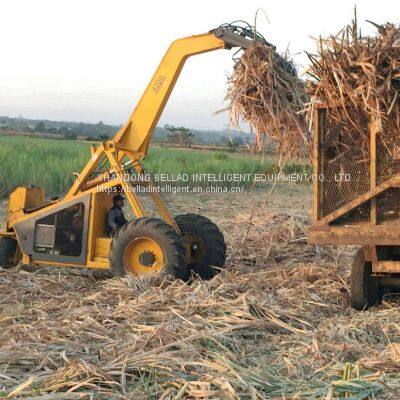

Three wheel bell logger wheel loader log grapple with 1 ton capacity
Contact：Richie Shi
Title :Sales Manager
Mobile：+86 13356718553(whatsApp/wechat)
Email: richie_shi@outlook.com
Car weight
| 5200kg
|
Grab weight
| 1000kg
|
engine model
| Cummins 4BTA3.9-C125/ Yuchai 4102 turbo
|
Engine power
| 74kw/76kw
|
Walking speed
| ≤25km/h
|
Rated Revolution
| 2000r/min
|
Hydraulic system pressure
| 20MPa
|
Hydraulic system displacement
| 63ML/r
|
Maximum catch height
| 5400mm
|
Maximum unloading height
| 5000mm
|
Min Rotary Radius
| 3600mm
|
Total length
| 7250mm
|
Total width
| 2150mm
|
Cab height
| 2780mm
|
Between tire
| 1790mm
|
Ground clearance
| 400mm
|
Max Grab Size
| 1200mm
|
Min Hold Circle Size
| 530mm
|
PRODUCT PERFORMANCE CHARACTERISTICS
1. Rotate 360° in situ, and the working space is small.
2. Strong climbing ability, suitable for different site operations.
3. Workbench, water temperature, oil temperature, current, working time, clear at a glance.
4. Adopt famous brand hydraulic parts, Cummins engine, long service life, strong power and fast working speed.
5. While walking, pile up, the gripper can meet the front grip and side loading, which greatly improves the work efficiency.
6. It adopts hydraulic walking, and each operation action is completed with hands and feet, which improves work efficiency, and each machine can replace a large amount of human work intensity.
>>
