Time Delay Monitoring Relay 0.1s~100h

Product Description

DC AC Time Delay Relay Monitoring Relay

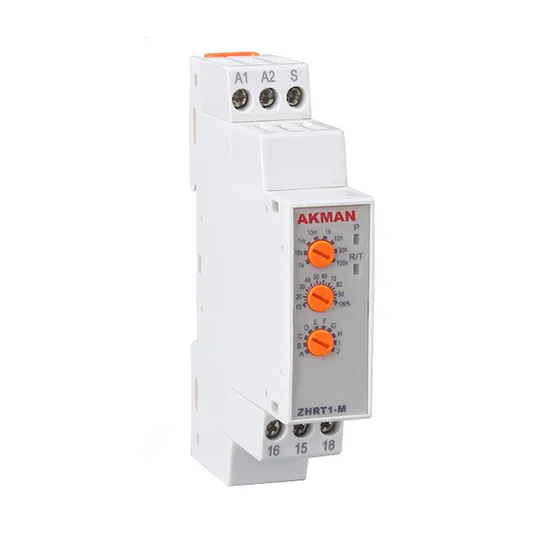

Operating Instructions for ZHRT1 Series Time Relay
Function Features
1.Compact in size, with a width of only 18mm that can be mounted onto 35mm symmetric DIN rail.
2.A wide time delay range of 0.1s... 100h. 3.Repeatable accuracy<=0.2% .
4.Built-in high-performance microcontroller with strong resistance to interference and high reliability.
5. Various rated supply voltage specifications available .
6.LED indicator lamp indicates "power ON" and "time delay"states .
Model and Connotation
Model Selection Table

Model	Function	Rated supply voltage	Contact	Delay range
ZHRT1-M1	A.Power on,relay off,delay on	DC12V DC24V AC110V AC220V AC380V AC/DC24V~240V	1:1C/O, 2:2 C/O 2T:1C/O+1 instant C/O	0.1s~100h
	B.Power on,relay on,delay off
	C.Cycle delay OFF start
	D.Cycle delay ON start
	E.Signal on,relay on,signal off,relay delay off.
	F.Signal on,relay on,delay until off.
	H.Signal on,relay delay on,signal off.relay delay off.
	G.Signal off.relay on ,delay off.
	I.Signal off,relay status transition
	J.on power,relay delay to output 0.5 seconds pulse

Technical Parameters

Rated control supply voltage	DC12V,DC24V AC110V,AC220V,AC380V AC/DV 24V~240V 50/60Hz
Rated power consumption	AC:≤1.5VA DC: ≤1W
Delay range	0.1s~100h
Setting accuracy	≤5%
Repeat accuracy	≤0.2%
Repeat power-on interval	≥200ms
Electrical Life	105
Mechanical life	106
Altitube	≤2000m
Contact configuration capacity(A)	1C/0 8A;2 C/O 5A
IP Class	IP20
Class of pollution	3
Use category	AC-15
Contact capacity	Ue/le AC240V/1.5A,AC380V/0.95A
Output type	1C/O;2C/O;1C/O+1 instant C/O
DIN rail Standard	Width:35mm(IEC/EN60715)

Panel Diagram
Function diagramWiring Diagram
Diagram of Overall Dimensions Wiring Diagram

---
