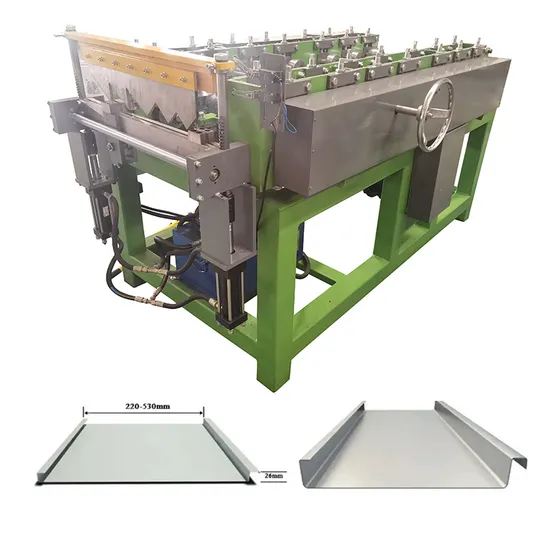

Standing Seam Panel Metal Roof Tin Making Roll Forming Machine

Product Description

Advantage of Portable Standing Seam Forming Metal Roofing Machine 1. Capable of producing various sizes with a single machine, eliminating the need to change molds or cutting blades.
2. Easy to install,the control system and hydraulic station are integrated into the machine. Simply connect the main power cable to start.
Profile Drawing:
Profiles can be designed according to customers requirements
Customer Successful Project:
We provide a wide range of high-quality portable roll formers, capable of producing up to seven distinct panel profiles for metal buildings. These machines support variable widths, multiple gauges, and a variety of material types, depending on the model you select.Designed for applications ranging from residential to heavy commercial use, our roll formers and gutter machines can be customized with optional equipment to meet the specific needs of your business.
Technical Parameters:

Type	KSL25-220-530	KSL38-220-530
Material Width	290-600mm	290-600mm
Height of Roofing	25mm	38mm
Effective Width	220-530mm	220-530mm
Thickness for steel	0.5-0.8mm	0.5-0.8mm
Thickness for aluminum	0.7-1.2mm	0.7-1.2mm
Forming steps	6Steps	8steps
Dimension	1800*1200*1000mm	2000*1100*1200mm
Motor Power	1.5KW	2.2KW
Hydraulic Power	0.75KW	0.5KW
Forming Speed	8-15m/min	6-8m/min
Weight	150KGS	1500KGS
Control System	PLC Control	PLC Control
Material of rollers	45# steel	45# steel

Machine Components:

1	Main Machine
2	3Pcs Run Out Table
3	5 Tons Manual Uncoiler
4	Auto Seamer
5	Hand Seamer

Our Services:
1. Factory Lifetime Service:offer technical support for the entire life of our machines.
2. Customized Profile:can design the profile according to customer request.
3. One-Year Guarantee Period:we could supply you the replacement parts free of charge for any damaged parts caused by quality problems.
4. Overseas Services Optional:we can send our technicians to install and train the workers in the clients' factories with extra cost.
XIAMEN XINHONGHUA MACHINERY CO. LTD.(FUJIAN XINHONGHUA MACHINERY CO. LTD) was founded in 2004.as the earlier company which engaged in the manufacture of cold roll forming machines,after the reform and innovation of more than 20 years,and on basis of manufacture of modern management concepts,strong technology,advanced production technology,perfect service system,we have been currently in the domestic leading position,and as good competitor among the same industry of world.
Our company is located in the beautiful scenery,nice island of Xiamen.And have variety of products with stable performance,Always pay attention to improve the existing products and research and develop the new products.We have nearly 100 kinds of professional and technical personnel,with its strong ability of product design and development,to ensure a high level design of our product.For our products with light structure, reasonable design and updating styles,so we become well-know in the steel structure industry.
Shipping:
For different machines or production line parts, we have different packing solutions:
- For the machine or production line, we will use plastic film to cover and wrap. Then will be loaded to the container by forklift or crane.
- For the key parts such as the roll forming rollers set, we will use the metal frame to package.
All Steadily fastened in the container in a suitable manner with steel ropes and locks, being suitable for long-distance transportation.
Q:Are you a trading company or manufacture?
A:We are a factory.
Q:Do you provide samples ? ls it free or extra ?
A:Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.We couldoffer the sample for free charge
Q:Where is your factory located?
A:Our factory is located in Xiamen City, Fujian Province, China. You are warmly welcome to visit us !
Q:Can you make the machine according to my design or prototype?
A:Yes. We have an professional designer for working out the most suitable design and productionplan for the machine that you are going to book with us.
Q:How can I trust you that machines pasted testing running before shipping?
A:1) We record the testing video for your reference.2) You are welcome to visit us and test machine in our factory.
Q:Do you provide instaling and training overseas?
A:Overseas machine install and worker training services are optional.
Q:How is your after sales support?
A:We provide technical support on line as well as overseas services by skillful technicians
Q:Guarantee period?
A:Within one year since the date of finishing commissioning

---
