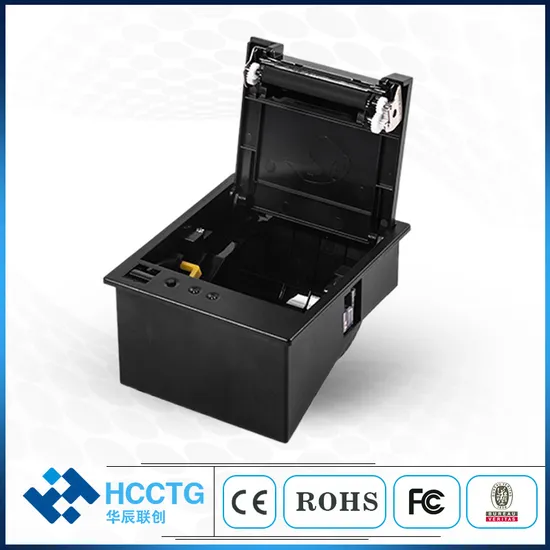

80mm Thermal Receipt Panel Printer with Cash Drawer Interface (EC80A)
High Printing Speed up to 130mm/second Feed paper automatically Support Windows2000/XP/7/8/10, Linux Good price and Short delivery lead time Factory/Manufacture with engineer team, able to do OEM&ODM With cutter, mechanism, control board; With bracket optional Support USB+RS232 or TTL, parallel Interface Support Big diameter roller paper more than the 50mm Support cash drawer control interface Support paper take away the detection function Support detection the paper end function Support Control Lock opening cover (Optional)
| Printing Method | Thermal |
| Dots/line | 640dots/line |
| Resolution | 203DPI |
| Printing Width(mm) | 72mm |
| Paper Width(mm) | 80mm |
| Paper Thickness(um) | 56-100 |
| Printing speed | 130mm/s |
| Paper diameter | MAX (50MM) |
| Feed Resolution(mm) | 0.125 |
| Interface | USB+RS232/USB+TTL |
| W x D x H(mm) | 124.8x125x70.5mm(L*W*H) |
| Installed size | 117mm*117mm(L*W) |
| Weight(g) | 532 |
| Head temperature detection | Thermistor |
| Paper detection | Transmission photo electricity switch |
| Black mark detection | Reflecting photo electricity pipe |
| Platen position detection | Light touch swath |
| Operation voltage (V) | 12V±10% |
| Graph Printing | Support different density Graph, raster bitmap and download bitmap |
| Language | Simplified Chinese, Traditional Chinese, English and other 45 kinds of international characters |
| Barcode | 1D Barcode UPC-A, UPC-E, EAN-8, CODE39, ITF; CODE128, CODE93, QRCODE |
| Logical voltage(V) | 5±0.25 |
| Form feeding motor voltage(V) | 24±10% |
| Auto cutting motor voltage(V) | 24±10% |
| Detection voltage (V) | 5±0.25 |
| Abrasion resistance | 100km |
| Auto cutting frequency | 1 million times |
| Operating temperature(°C) | 0 to 50 (no condensation) |
| Operating humidity(RH) | 10% to 80% (no condensation) |
| Storage temperature(°C) | -25 to 70 (no condensation) |
| Storage humidity(RH) | 5% to 95% (no condensation) |
Applications KIOSK & vending machine queuing machine Promotion coupon printing machine Parking system Gas station filling machine Game machine & vote machine Pictures
