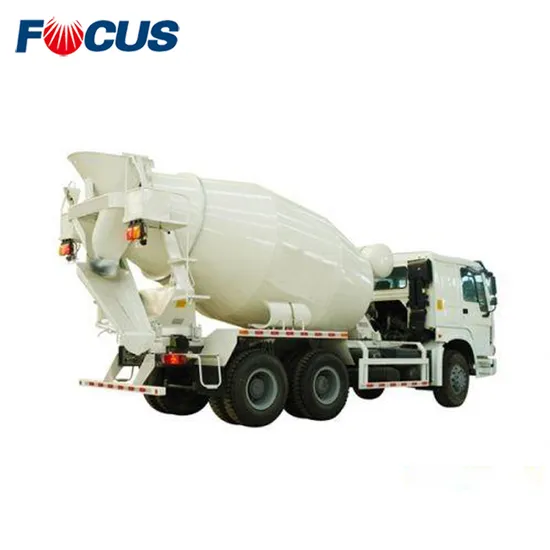

LHD and Rhd Sinotruck 8m3 HOWO 6X4 Ready Mixed Concrete Trucks with Factory Price

Product Description

Sizes of LHD and RHD SINOTRUK HOWO 6x4 ready mixed concrete truck:
8m3 ready mixed concrete truck, 9m3 ready mixed concrete truck, 10m3 ready mixed concrete truck, 12m3 concrete mixed truck
Main features of FOCUS LHD and RHD SINOTRUK 8m3 HOWO 6x4 ready mixed concrete truck with factory price:
1.Oil tank and radiator of SINOTRUCK HOWO 6x4 ready mixed concrete trucks are imported top brand combination with temperature control switch and vacuum meter while oil change and maintenance are easily realized for our transit mixer.
2.Pump, motor and reducer in SINOTRUCK HOWO 6x4 ready mixed concrete trucks are all original imported AMERICA static pressure driving system with big driving torque and high efficiency.
3.Stirring vat auto-welding improves SINOTRUCK HOWO 6x4 ready mixed concrete truck production efficiency and makes welding quality finer.
4.Tri-axial design and three-section double logarithm helix surface design can ensure concrete speedy feeding and discharge and low surplus rate in our transit mixer.
5.Fault indicator of SINOTRUCK HOWO 6x4 ready mixed concrete truck for the transit mixer can check all welding seams of stirring vat to ensure good welding quality after it's being welded by auto-welding machine.
6.Truck frame adopts tri-axial lineation machining, and adopts laser check to ensure an accurate installation position

Truck name		HOWO Concrete mixing truck
Size parameters	Dimension(L×W×H)(mm)	8715*2496*3800
	Wheelbase(mm)	3600+1350
	Front overhang/rear overhang(mm)	1500/2240
	Approach angle/departure angle(°)	16/26
	Mix round cubage (m 3 )	8 m³
	Obliquity of the drum( 0 )	15/13
Weight parameters	Gross Vehicle weight(kg)	12800
	Permissible loading capacity	12070
	Vehicle + loading capacity (kg)	25000
	Axle load(kg)	7000/18000
Work parameters	Rotary speed of the drum(r/min)	0-18
	Input speed(m 3 /min)	≥3
	Output speed(m 3 /min)	≥3
	The rate of remaining	≤1%
	Supply mode	Atmospheric type
	Volume of the water tank	300L
Hydraulic system	Pump	IMPORT PARTS
	Motor	IMPORT PARTS
	Retarder	IMPORT PARTS
Engine	Model	WD615.69
	Rated engine power(kw/rpm)	336HP
	Max. torque N.m/(r/min)	1280/1300-1600
Gear Box	Model	HW13710
Brake system	Service brake	Dual circuit brake
	Park brake	Spring energy air cut brake on front shaft and rear axle
other	Max. speed(km/h)	90
	Tire	12.00R20
	drive form	6×4

---
