Xz200 Trenchless Underground HDD Drill Machine Horizontal Directional Drilling Rig

Product Description

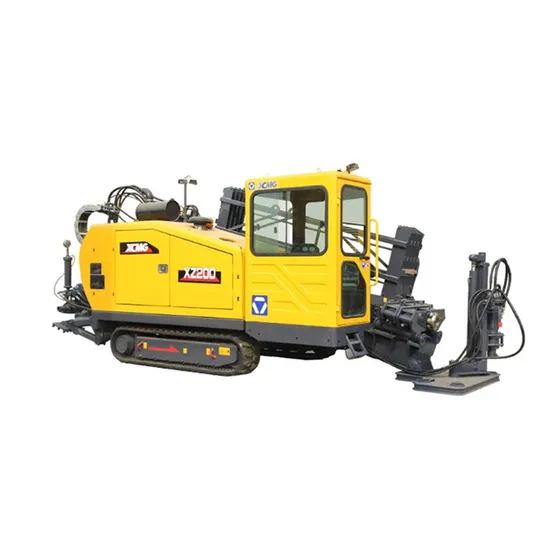

XZ200 Trenchless Underground HDD Drill Machine Horizontal Directional Drilling Rig
Product Description 1.Hydraulic pilot control, provide comfortable operating performance and flexible regulation, first-class brand of hydraulic components to ensure the reliability of the machine hydraulic system.
2.Carriage and clamp use double floating patented technology can greatly protect the drill pipe thread, increase the service life of the drill pipe.
3.High-speed sliding systems, Piston Motor to achieve high and low sliding speed of carriage, increasing the ability to adapt the machine working conditions, promote construction efficiency.
4.Stable chassis support, using the classical H type beam structure, quality rubber track, frog Outrigger, provides a strong guarantee for the stability of construction.
Technical Parameters

Description	Unit	Specification
		XZ200
Dimension(L*W*H)	mm	5900*2250*2400
Overall weight	t	8.5
Engine model		6BTAA5.9-C150
Engine power	kw	112/2200
Thrust-pull model		Rack and pinion
Max. pullback/thrusting	kn	220/220
Max.spindle torque	N.m	6350
Spindle speed	r/min	0-160
Spindle travelling speed	m/min	0-26
Max.backreaming diameter	mm	600
Pipe length(single)	m	3
Pipe diameter	mm	60
Entry angle	°	10-22
Max.mud flow rate	L/min	250
Max.mud pressure	bar	80

Product Pictures
