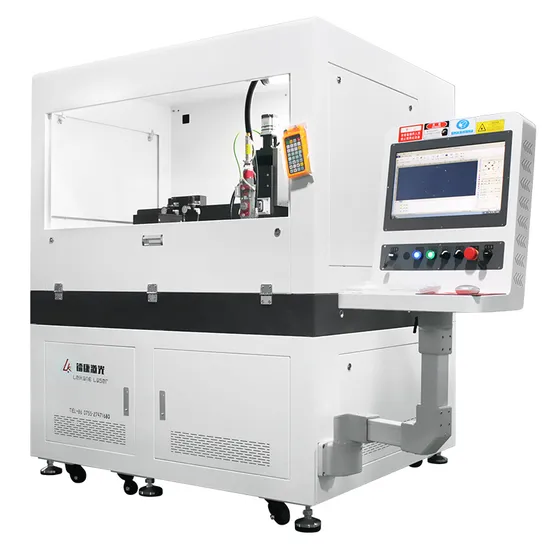

Mini Medical Coronary Heart Cardiac Stent Manufacturing Processing Tube Laser Cutting Machine for Small Diameter Metal Pipe Cutter

Product Description

Professional Mini Medical Coronary Heart Cardiac Stent Tube Laser Cutting Machine for Small Diamter Metal Pipe Tube Cutter
Product Description
LK-Metal Tube Laser Cutting Machine1) The mini high precision tube laser cutting machine max working speed:300mm/s(X);100mm/s(Z);600rpm(θ)2) Thickness: 0.1-1.0mm, cutting diameter: 0.3-16mm, the length not limit3) Laser tube type: optical fiber laser4) Laser power: 220V 50HZ AC15A5) Mini width of cutting slit: ±5um
6) Ensure minimal heat effect zone
7) Built-in digital control for parameter setting
8) Built-in automatic tube feeding mechanism
9) Fully automatic cutting machine with cypcut software
10) The metal pipe laser cutting equipment compatible with various processing needs such as round tubes, D-shaped tubes, square tubes, etc.
What are the characteristics of the cutting material of the tube laser cutting machine? 1. Small deformation of narrow-slit workpieces Pipelaser cutting machines. The laser beam is focused into a small spot, making the focal point reach high power density. The pipe laser cutting machine has no burrs, no wrinkles and high precision, which is better than plasma cutting.
2. Non-contact processing the cutting material does not need to consider its hardness, the performance of the tube laser cutting machine is not affected by the hardness of the material being cut, and it can cut any hard material.
3. Adaptability and flexibility the laser beam of the pipe laser cutting machine is controllable, has high adaptability and flexibility, and is very convenient to combine with automation equipment, making it easier to automate the cutting process. Product Parameters

MModel	LK-JMW
Laser Power	200W/500W1000W/1500W optional
Laser Source	GW
Laser cutting head	Raytools
Laser Wavelegth	1064nm
Laser Type	Optional Fiber
Tube Diameter	0.3-15mm
Wall thickness	0-2mm
Tube types	SS,Niti,CoCr,Mg+, Fe+ and other kinds of metal tubes
Travel distance	500mm(X);100mm(Z);
C Axis Working Speed	300r/min
Transaltion speed	60m/min
Precision	±3um X axis, ±25 arcsec θ axis, ±3um Z axis
Re-precision	±1um X axis, ±3 arcsec θ axis, ±1um Z axis
Width of Cutting Slit	20um
Consistency of cutting slit	±5um
Frequency	0-50KHZ
Stable of power	<±3%(continuous working 8 hours)
Diameter	0.3-16mm
Input data format	DXF, Gerber
Laser Beam	M2<1.1
Power Supply	220V single phase

Detailed Photos
Application
High precision medical coronary cardiac stend laser cutting machine suit for different tube diameter, thickness, length. It used for medical tube cutting, drilling, like micro hypotube, snake bone tube, needle, cannula, stent, ultrasonic scalpel, cannulas, needle assemblies, obturator & trocar, debrides, burr-blades, continuous or interrupted spiral design, articulated joints, puzzle-lock pattern, pull ring assemblies, link and spring welded assemblies, catheters and suture anchors manufacturing and processing.
FAQ
QI: I know nothing about the tube laser cutting machine, what kind of machine I should choose?
A1:Very easy to choose just tell us your cutting tube material, diameter, wall thickness, requirement on accuracy? And sending us a sample picture is better. Then we will send you a perfect solutions and suggestions.
Q2: When I get this machine, but I don' t know how to use it. What should I do?
A2: We will send you the English manual and training video of machine. If you still have some doubts, we can talk by telephone or skype. Our engineer can also be sent to your country to install or adjust machine if necessary.
Q3:If some problems happened to this machine during warranty period, what should I do?
A3: We will supply free parts for this machine during the warranty period if machine have any problems.We also supply free afterservice forever. So any doubts, just let us know, we will give you solutions within 30 minitus.
Q4: How long is the delivery time?
A4: Usually delivery time will be 10-15 days ,and if customization ma- chine will take 15-20 days.
Q5. How about the packaging?
A5: Firstly, Packed the fiber laser machine with plastic sheet for clearing and damp proofing.
Secondly, Then put the fiber laser machine in the plywood case for safety and clashing.
Thirdly, Transport the plywood case into the container.

---
