Industrial Horizontal Ribbon Mixer Machine for Pharmaceutical Excipients

Product Description

Product Description HORIZONTAL RIBBON MIXER
It is widely used in the solid-solid(powder material) and solid-liquid mixing in the field of chemical industry, pharmacy, food-stuff industry, etc.

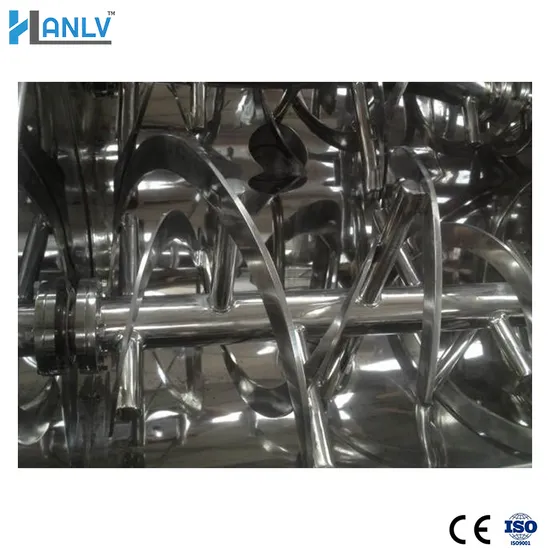

Horizontal ribbon mixer includes U-shape container, transmission parts and ribbon stirring blades ,which usually have double or triple layers with outside stir gathering the material from sides to center and inside stir transmitting the material from the center to sides of the to-from convection mix. Ribbon mixer has a good result in the mix of viscosity or cohesion powder and of putting liquid and mash material into the powder. The cylinder cover can be fully open so as to clean and change the device.

Technical Data Technical Parameters

Model	5
Barrel Volume(L)	5000
Loading Volume(L)	2500-3500
Mixing time(min)	10-30
Stir Motor(kw)	30

WLDH-5 BLENDING SYSTEM COMPONENTS LIST

Item	Name	QTY	Detail/Origin/Brand	Remark
1	Mixer Vessel	1set	5CBM, HANLV	Stainless Steel304 6mm thickness, Sidewall 30mm thickness
2	Mixer Shaft	1set	HANLV	Stainless Steel304 190mm diameter
3	Ribbon Bars	1set	HANLV	Stainless Steel304 60mm diameter
4	Ribbons	1set	HANLV	Stainless Steel304 10&12mm thickness 75mm width
5	Sealing Keats	2pcs	HANLV	F4
		2pcs	HANLV	Air sealing
6	Bearing	2pcs	NSK	Imported
7	Oil Sealing	2sets		Rubber
8	Bearing House	2sets	HANLV	45# Steel + SS304
9	Coupling	1set	HANLV	45# Steel+ SS304
10	Motor & Reducer	1set	SIEMENS	30kw / 4P/ IP54
11	Electronic Controller	1pc	SCHNEIDER	IP54
12	Inverter	1set	SIEMENS	37kw
13	Discharge Valve	1set	HANLV	Stainless Steel 304
14	Discharge Cylinder	1set		Cylinder Diameter 120mm
15	Machine Frame	1set	HANLV	100mm tube Stainless Steel 304

Product Details
FAQ FAQ
Q:How long is your delivery time?
A:Generally, it will be about 35-40 days after deposit, which also will affected by the actual situation of the project.
Q:What Will We Do If We Have Problems in Machine Working After We Buy the Machine?
A: HANLV has people special for after-sale service,if customers outside China have problems when machine working,just feel free to send us the picture or video to show us,we will give you solutions in 24hours.
Q:Could We Visit Your Factory and Test the Machine?
A: We warmly welcome you to visit our factory anytime,and we are very glad to test our machine with your raw material.
