0.96inch 128X64 Handheld & PDA OLED LCD Display Module with Spi & MCU 8bit Interface

Product Description

0.96inch 128x64 Handheld & PDA OLED LCD Display Module with Spi & MCU 8bit Interface

Product Description Product Specification:
0.96 inch OLED screen with black and white, black or blue or yellow and blue color display 128x64 resolution for clear display and high contrast Large viewing angle: greater than 160° (one screen with the largest viewing angle in the display) Ultra-low power consumption: normal display is only 0.06W (far below the TFT display) Military-grade process standards, long-term stable work Provides a rich sample program for STM32, C51, Arduino, Raspberry Pi and MSP430 platforms Provide underlying driver technical support

Model No.:	RB096-2864KSWYG01 RB096-2864KLBYG01 RB096-2864TMBYG01
Screen Size:	0.96"
Display type:	OLED
Resolution:	128*64
Viewing direction:	Free
Module size(W*H*T):	26.70*19.26*1.27mm
Active area (W*H):	21.74*11.2mm
Brightness:	120 cd/m²
Display Color:	White / Blue / Yellow&Blue
Contrast:	2000:1
Interface:	I2C & SPI & MCU 8Bit,
Pin NO:	30Pin
Pin pitch:	0.7mm
Connecting type:	FPC Soldering Connector
Operating Temperature:	-40 ~ +70ºC
Storage Temperature:	-40 ~ +85ºC

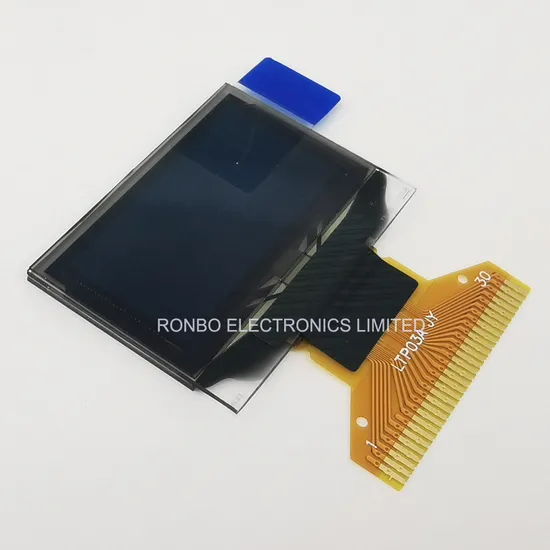

Detailed Photos
Product Drawing
Interface Definition
Packaging & Shipping Packaging & Shipping & Delivery
Packaging Details:
All the products are packed in right way to keep it safe.
For small sizes of products we use tray + carton,
For bigger sizes we use foam slot + carton.
we also design packages according to customers' requirements
Shipping Details:
For small quantity orders: we ship by UPS Air-Express, or DHL/FedEx/TNT/ EMS Express service, it is safe and fast.
For large quantity orders: we ship by buyer's cargo agent in China,
we can also ship by air or sea transportation by our cargo agent.
Delivery Details:
Ready-made Sample: within 1 week
Custom Sample: 1~2 weeks
Mass production: 3-4 weeks
Our Company:
Ronbo Electronics Ltd., is one of the leading display suppliers. Its production line includes small to medium size LCD, TFT and IPS modules for a variety of industrial and consumable application. We are one of the leading display providers of character LCD modules, graphic LCD modules, TFT & IPS modules and Touch Screen. High-quality LCD modules are made based on our experienced engineering knowledge, well-managed supply chain.
Moreover, our company has passed ISO 9001 certifications as well as RoHS.
By adopting computerized management system, automatic manufacturing process and advanced technology, we can able to continuously supporting our worldwide customers with qualified and reliable products.
Our Advantages Our Advantage:

Rich experience	Good knowledge of the displays market to put together solutions that add value and provide a unique proposition for the client
Advanced Equipment	Full automatic FPC&IC bonding machine, film attaching machine, CNC machine, Polish machine advance production equipment ensure product quality
Quality Assurance	Advance inspection instrument and equipment to ensure 100% inspection for each and every piece before shipment
Fast response	Quickly realize your customized ideas, and have a sample ready in short time
Low MOQ	Depends on product
Stable supply	1~10 years supply period
Extensive range	Providing complete solution from Mono to Color LCD module, Optical bonding between display to cover glass as well as cover glass to touch screen
Large production capacity	Operation capacity 2KK monthly
Quality guarantee	RoHS compliant
Management	ISO 9001:2008, ISO 14001:2004

Product Line:
☆ Clean Room class 10K@0.8um, Pressurec 0.8kgf
☆ Antistatic floor, resistance : 1X10 ohm to 1X10 ohm
☆ COG production lines: 4 .
☆ Backlight production lines: 2 .
☆ Existing machine capacity will be 1KK per month.
Quality Policy:
All materials we purchase for making any orders are high quality and RoHS compliant, and Control quality with ISO 9001:2008 management system.
Advance inspection instrument and equipment to ensure 100% inspection for each and every piece before shipment
Certification:
FAQ FAQ:
Q: How can I get some samples?
A: We don't provide free one, but we can have a discount when you reorder according to different quantity, and you will win at least 3% discount.
Q: What is the MOQ?
A: It depends on different products. Please keep in touch with sales to confirm the MOQ.
Q: How do you control quality?
A: All materials we purchase for making any orders are high quality and RoHS compliant, and Control quality with ISO 9001:2008, ISO 14001:2004 management system.
Advance inspection instrument and equipment to ensure 100% inspection for each and every piece before shipment0*480 CapacitouScreenCDsplay
Q: Does your product have any warranty?
A: Yes, we offer 12 months warranty for our products.
Q: What's your payment method?
A: Payment: T/T, Paypal, Western Union, etc.
For samples: payment in advance.
For mass production: 30% deposit and 70% balance before shipment.
Q: Do you offer custom solution?
A: Yes, we can offer custom solution if standard products couldn't meet buyer' requirements.

---
