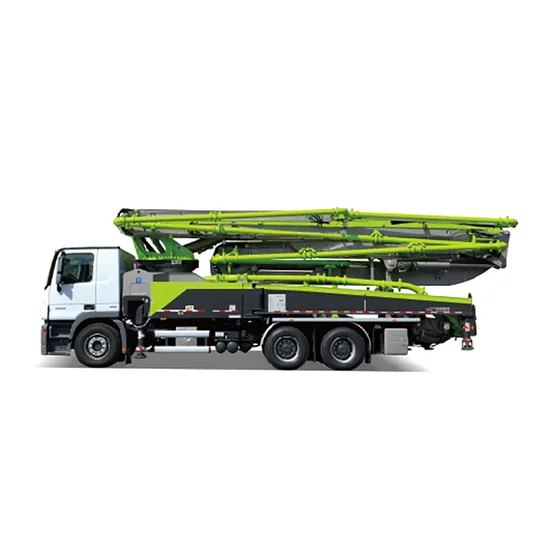

Zomlion 62meter Heavy Duty Concrete Pump Truck 62X-6rz with 5 Boom

US$275,000.00
1 Piece
US$260,000.00
2+ Pieces

Basic Info.

Model NO.
62X-6RZ
Shotcrete Type
Wet
Machining Process
Hydraulic
Structure
Cylinder Type
Productivity
180m²/h
Feeding Height
1370mm
Vibrating Amplitude
2.6mm
Certification
ISO9001: 2000, CE
Condition
New
Color
Green
Weight
44000kg
Max Output
180cbm/ Hour
Max Pressure
13 MPa
Milage
16692km
Max. Vertical Conveying Distance
61.2m
Transport Package
Nude
Specification
14990*2530*4000mm
Trademark
RICHMCHN
Origin
China
HS Code
870590910
Production Capacity
100unit/Year

Packaging & Delivery

Package Size
1600.00cm * 250.00cm * 420.00cm
Package Gross Weight
49000.000kg

Product Description

Product Description
62m 62X-6RZ Truck-Mounted Mobile Concrete Pump Mercedes Benz chassis
Product Description
Model
 SYM5445THBEs
Pumping system
 Max. Theor. output
 m3/h
 180
Max. Theor. concrete output Pressure
 MPa
 13
Rated working pressure
 MPa
 35
Pumping frequency
 min-1
 v27/17
Hopper capacity
 L
 650
Filling height
1540
Hydraulic system type
Open loop
Distribution valve
S valve
Oil cylinder dia.×stroke
 mm
 Φ230×2100
Concrete cylinder dia.×stroke
 mm
 Φ230×2100
Hydraulic oil cooling
Air cooling
Recommended concrete slump
 cm
 12~23
Max. aggregate dimension
 mm
 40
Placing boom
 Structure type
62-6RZ
Placing depth
 m
 55.9
Horizontal distance
 m
 62
Placing depth
 m
 56
Slewing angle
±270°
Boom number
5
The length of boom section
 mm
 8890/8100/8105/5405/3500
Sections folding angle
90°/180°/180°/250°/90°
Pipe diameter
 mm
 125
End hose length
 mm
 3000
Min. height of opening placing boom
 mm
 9610
Outriggers span (front×rear×side)
 mm
 8190×8345×7045

Detailed Photos
