720p HD Wireless Backup Camera System IP69K Waterproof Waterproof Rating for Vehicle

Product Description

Product Description
High resolution 7 inch wireless camera system
Waterproof Wireless High-Definition LCD Monitor (MWHD-774M)
Features
1.7-inch digital screen monitor built-in 2.4GHz digital wireless video signal receiver
2. Multi-frequency hopping frequency automatic code matching, good anti-channeling interference, open transmission distance 150 meters
3. Automotive industrial grade -40°~85° digital video processor
4. Graphical OSD menu to set the screen mirroring and front image, reversing ruler, trigger priority application functions
5. Independent design appearance patent, the shell is made of ABS+PC material, which has the characteristics of high temperature resistance
6. Detachable sun visor to prevent sunlight from affecting the display screen effect
7. The bracket is made of anti-rust metal material, U-shaped + bilateral fastening anti-seismic design
8. 1024RGBX600 high resolution and 600cd/m high brightness, clear images
9. Load dump pulse voltage DC24V+174V (350ms) designed to protect the vehicle from transient pulse damage
10. DC8~32V wide range working voltage
11. Built-in external power supply reverse polarity protection, LED thermal response, constant current and constant voltage protection, service life circuit design

System model	HDWS-774M161M4
Waterproof Wireless High-Definition LCD Monitor (MWHD-774M)
Color LCD screen	7-inch IPS screen
Wireless reception	Built-in 2.4G wireless receiver with 4 channels
Picture mode	Single screen switch + 4 split
working frequency	2400~2483.5MHZ
Receiving sensitivity	≤-86 dB
Receiving distance	Open area≤150m
Multi-frequency automatic frequency hopping channel code ion	80
Resolution	1024(H) X 600(V)dot
Color system	PAL/NTSC (AUTO)
Brightness(cd/m2)	600
Load dump	DC24+174V(Td350mS) 5pulses
Vibration resistance level	5G (conforms to GB-T2423056-2006 standard)
Working temperature	-20ºC to +70ºC
Storage temperature	-30ºC to +80ºC
Working voltage	DC8-32V
Dimensions	(L x W x T) (216 x 150 x 80mm)

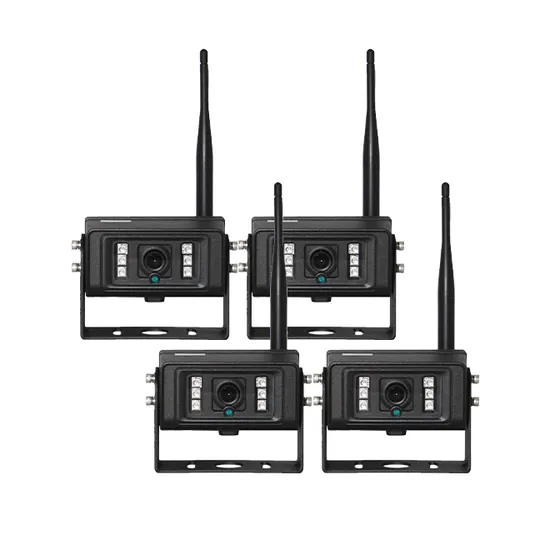

Wireless HD Car Waterproof Camera (CWHD-161M)
Features 1. 720P 2.4GHz digital wireless camera
2. Car regulation DSP million high-definition pixels
3. Heat-dissipating aluminum alloy case
4. Nitrogen filling anti-fogging, waterproof IP69K (patented waterproof testing equipment)
5. The built-in IR-CUT filter corrects the color cast during the day and improves the brightness at night

Wireless HD Car Waterproof Camera(CWHD-161M)
Image sensor	1/3.7 Color DSP
Wireless transmission	Built-in 2.4G digital wireless transmitter
Transmit power	18dBm
Launch distance	Open area≤150m
Resolution	720P
Effective pixels	1280(H) X 960(V)
Viewing angle	130°
Infrared distance	15 meters
Shell material	Aluminum alloy
Waterproof rating	IP69K
Working voltage	DC8-32V
Working temperature	-20ºC to +60ºC
Storage temperature	-30ºC to +70ºC
Vibration resistance level	5G (conforms to GB-T2423056-2006 standard)
Dimensions	74(W) x 141.5(H) x 120(D) mm

Product Application
