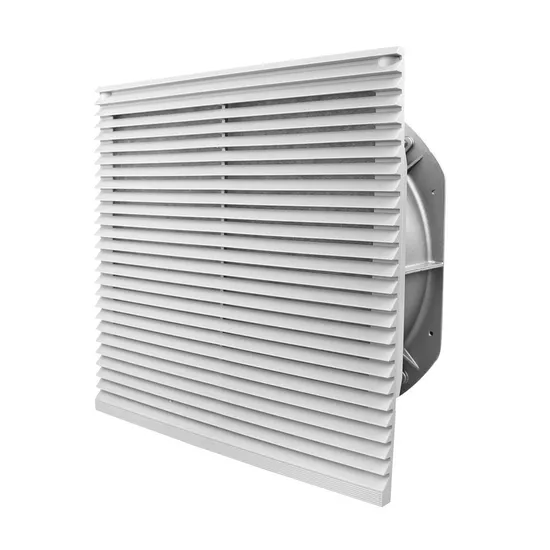

Custom Cabinet Accessory Electrical Panel Plastic Cooling Fan Mounted Filter

Product Description

Custom Cabinet Accessory Electrical Panel Plastic White Fan Mounted FilterProduct Description
Buckle-pull rotating ventilating fan grilles make it easier and quicker to change filter wool without using any tools. The back side is equipped with multi-hole nuts for customers to choose different sizes of fans for combination. Optional range of more internal mounting holes. All stainless steel nuts can effectively prevent rust.
Filter material: ABS
Flame retardant rating: UL94-V0 (optional)
IP rating: IP54
Product Parameters

Model	TK3326.230-D		TK3326.115-D
Colour	RAL7035	RAL7032	RAL7035	RAL7032
Material code	1010059	1010060	1010061	1010062
Axial fan	ZF-320B-230		ZF-320B-115
Rated working voltage (V/Hz)	230/50/60		115/50/60
Air flow rate, free blowing	1200/1350m³/h		1282.5m³/h
Axial flow fan	Capacitive electric
Rated current (A)	0.47/0.59		1.1/1.2
Power (W)	104/135		110/136
Noise level (decibels)	68/70
Working temperature range	-10ºC-+55ºC
Export filtration model	TK3326.300(RAL7035/RAL7032)1010057/1010058
Note: Standard PA66 plastic mesh cover, if special voltage or other mesh covers are required, please call our company for inquiries

Detailed Photos
TK3326-D TK3326.230-D TK3326.300-D
Size
Power characteristic curve Company Profile
Zhejiang Wenzhou Xituo Electric Co., Ltd. is located in Leqing City, Zhejiang Province. It is situated south of the famous scenic area of Yandang Mountain Range, north of National Highway 104, east of Ningbo Taizhou Wenzhou Expressway, and west of Wenzhou Airport and train station. The scenery here is beautiful and the transportation is very convenient.
After years of development and manufacturing experience, the company has strong technical strength, advanced and complete production and inspection equipment, and is a professional manufacturing enterprise with a large production scale. Its products enjoy a high reputation.
Our company's mission is to innovate in technology, strive for excellence, prioritize quality, and provide dedicated service. Xituo Electric warmly welcomes domestic and foreign manufacturers to negotiate cooperation and create brilliance together.
FAQ
Who are we?
Xitold Electric Co,. Ltd is a professional manufacturer of AC & DC cooling fans and some other electrical accessories. Our factory is in Wenzhou, Zhejiang Provience, in the east coast of China.
Could we ask for samples ?
Yes,we provide samples to be shown in the market end and tested in the lab.
Could we make tailored products?
Yes, we are capable of manufacturing goods of different size, voltage, color and specified designs with MOQ request.
How is the warranty period for your product?
We offer one year warranty for our customer.

---
