HDPE/PE Blowing Machine/ Cheap of Plastic Making Machine Price

Product Description

Product Description

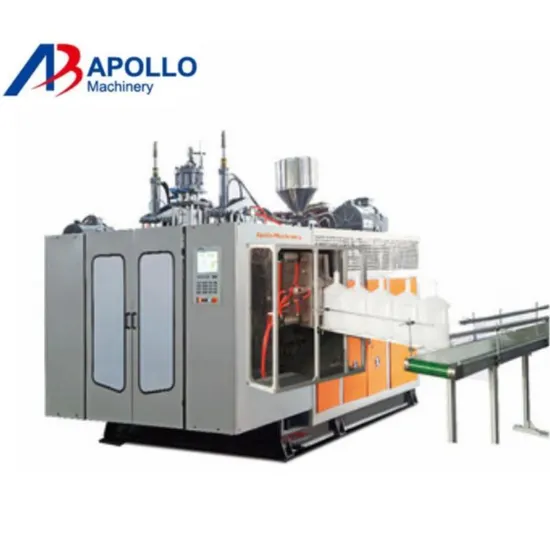

Plastic blow molding machine: ABLB65
Key word: Blow Molding machine, Bottle blow molding machine
This type of machine is suitable to produce different shapes of plastic bottles from 100ml to 5L.
Adopt Mitsubishi PLC from Japan.
Contactor use Schneider from France.
Most of spareparts of hydraulic system and pneumatic system are imported from Japan, Korea, France and Taiwan, China to ensure the quality of the machine.
Technical Parameters: ( ABLB65)
Basic parametersSuitable materialPE.PP,PVC,PS,PETG,so on
Max volume5L
Output capacity160~250 pcs/h
Size3.8×2.2×2.4(M)
Weight4.8T
systemSpecificationParametersNote
Plasticizion systemSummarizeHigh efficient low power consumption plasticizion system,transducer control,self-protect function when started at low temperature
ReducerHard finishing,High intension,Low noise reducer
Screw65mm,L/D ratio 24, 38CrMoALA Cooling system available
Plasticization85Kg/HHDPE
Heating Zone3-4 Aluminum HeaterAutomatic heating
Heating power8KW/H
Extrusion MotorThree phase asynchronous motor (380V,50HZ)
Cooling Fan3-4zone Automatic cooling


Extrusion systemSummarizeHigh-grade alloy steel, center feeding
Die head number1 or 2
Center distance of die heads130~160mm
Max die mouth140mm
Heating zone3-4 Stainless steel heating cycle
Heating power3~5KW
Clamping systemSummarize
High intension, rigidity, center mold locking, stable mould opening and clamping system
Clamping force65KN
Template distance145~568mm
Max mould size290X320mm
Mould materialHigh grade 50# steel
Electric systemSummarizePLC+ touch screen(man-machine interface)standard extrusion blow molding machine controlling system(AUTO monitoring, fault-alarm, auto counting ,auxiliary function available)Japanese Mitsubishi PLC
system
Operate interfaceTouch screen, automatic self-diagnose alarm system
Temperature controlAutomatic temperature control module
Movement controlJapanese Mitsubishi, Chinese/English
Version
Electric protectionAmpere overload, electric short circuit self-protection function
Hydraulic systemSummarizeMultiple function hydraulic integrated block Proportional control, high efficient
Oil pump motorThree phase asynchronous motor (380V,50HZ)
Oil pumpImported double pump
ValvesImported oil pump valves and connections
Oil pipesDouble layer overpressure resistant
System pressure60Kg/cm²
Cooling systemSeparate water cooling cycle, oil cooler cooling system
Pneumatic systemSummarizeTaiwan AIRTAC pneumatic system
Air pressure0.6Mpa
Air displacement0.6M3/min
Electromagnetic valve AIRTAC
Cooling systemSummarizeSeparate cooling system of mould, barrel and oil system
Cooling mediumWater
Water flow60L/min
Water pressure0.3-0.6MPa
The main components of the machine. ( ABLB65 )
electronic parts
NameTrader
Micro computer control systemJapanese MITSUBISHI
Temperature ControllerJapanese MITSUBISHI
Auxiliary RelayOMRON
contactorSchneider from France
Electric motorSIEMENS MOTOR
Power SourceTAIWAN MEANWELL
InverterDELTA
hydraulic parts
NameTrader
Oil pumpTAIWAN HIGH-TECH
ValveJAPAN YUKEN
Oil pump and connectionJAPAN YUKEN
Sealed partHALLITE
air control system
NameTrader
CylinderAIRTAC
Air ValveAIRTAC Product Parameters

Max. Product volume	5 liters
Out put capacity	180~210 pc/h
Screw diameter	65mm
Screw L/D ratio	24 L/D
Screw drive power	18.5 KW
Screw heating capacity	6 KW
No.of heating zone	3 zones
Output of HDPE	80KG/H
Oil pump drive power	7.5 KW
Clamping force	45KN
Max.size of mold	80-350mm
Mold stroke	320 X 360mm
Max.die diameter	140mm
Blowing pressure	0.6 mpa
Air Volume	0.6 M ³ /MIN
Cooling water pressure	0.3mpa
Water consumption	65 L/MIN
Size of Machine	2.95x2x2.7m
Weight of machine	6.7ton

The main components of the machine( ABLB65 II ):

electronic parts
Name	Trader
Micro computer control system	Japanese MITSUBISHI
Temperature Controller	TAIWAN YANHUA PID
Auxiliary Relay	OMRON
contactor	Schneider from France
Electric motor	Three phase 220V or 380V
Power Source	TAIWAN MEANWELL
Transducer	TAIDA FROM CHINA
hydraulic parts
Name	Trader
Oil pump	TAIWAN HIGH-TECH
Valve	JAPAN YUKEN
Oil pump and connection	JAPAN YUKEN
Sealed part	HALLITE
air control system
Name	Trader
Cylinder	AIRTAC
Air Valve	FESTO

FAQ
1. Q: -Can the machine customized only for my products?
A: - Yes, most APOLLO machines can be customized as per clients' requirements, including the structure special design and brand of parts special request.
2. Q: -How about the molds ?
A: - APOLLO has its own mold manufacture company for injection and blowing mold. Machine and mold can be tested for samples and smooth matching before shipping. Mold raw material is various for optional.
3. Q: -What is the business item for this project ?
A: - a. Delivery Date: within 45 working days after receive the deposit and samples or drawing confirmed by buyer and APOLLO .
b. Port of Loading: SHANGHAI, CHINA.
c. Payment: 30% TT deposit, balance before shipment or 100% irrevocable L/C at sight.
d. Container needed: One 20GP container.

---
