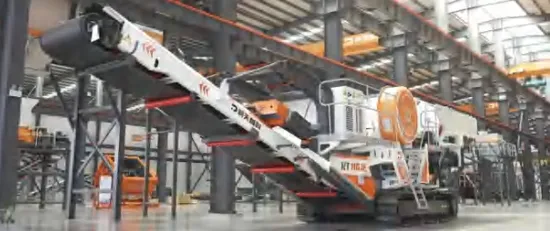

Rt116je Crawler Mobile Impact Crushing Plant

US$40,000.00-120,000.00 1 units (MOQ)

Basic Info.

Model NO.
RT116JE
Power Source
Electric
Weight
50t
Total Power
172kw
Crusher Model
C116
Belt Width
B650mm
Transport Package
Standard Package
Specification
RT116JE
Trademark
Changsha Tongchuang Mechanical Co., Ltd.
Origin
Changsha
Production Capacity
1000units/Year

Product Description

Product Description The Runtianzhike crawler mobile counter crushing station has a compact and integrated design, with a small construction area. The crushing mainframe adopts new manufacturing technology and unique structural design, which results in a higher crushing ratio and stronger crushing capacity. The processed products are cuboid-shaped, with no tension or cracks, and have a good particle shape. The discharge particle size can be adjusted hydraulically, allowing for diversified crushing specifications. The entire machine is driven by tracks, with strong power and convenient transportation, making it suitable for complex and varied construction environments.
Application scenario: It is widely used in coarse crushing and medium crushing in various medium hardness crushing process.Crushing of all kinds of mine rocks; Highway, railway, water conservancy, electricity, construction and other industriesProduction of sand and stone for construction purposes; All kinds of slag, cave slag, waste asphalt concrete, tailings and waste rock crushing and recycling.
Detailed Photos
Product Parameters
R T 11 6 J E
Crawler Mobile Jaw Crushing Plant
Feeding Device Max.feeding Size 700mm
Feeding Height 4100mm
Hopper Volume 9m³
Feeding Capacity 170-310t/h
Vibrating Feeder Vibrating Motor Power 2*7.5kW
Crusher Crusher Mode C116
Crusher Motor Power 132kW
De-Soiling
Conveying Belt
Belt Width B650mm
Power 4kW
Main
Conveying Belt
Belt Width B1000mm
Power 15kW
ronRemova
Device
ron Remover RCYQ-10
Power 3kW
Power Device MotorPower 103kW
Traveling Motor ltaly PMP
Whole Machine TotalPower 172kW
Total Weight 50t
Working Mode External power supply
Working Dimension 15.8mx4.3mx4.1m
TransportationDimension 15.8mx3.4mx3.8m
