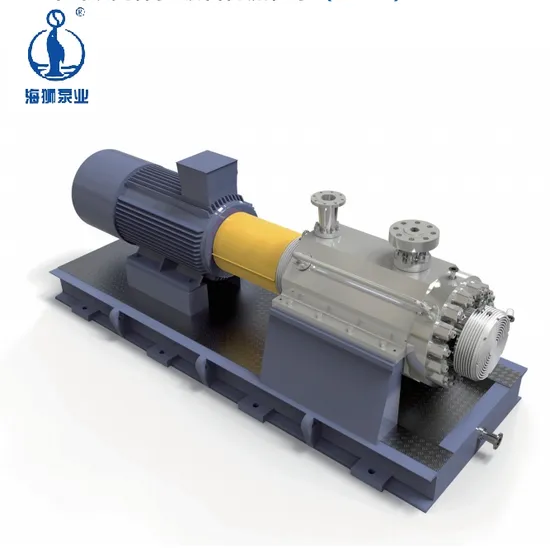

Horizontal Double Housing Multistage Petrochemical Process Pump (BB5)

Product Description

demonstration of the type	range of application	performance parameter
HD5F300-180X8 HD5F: Series code 300: Flow rate (m3/h) 180: Single stage head (m) 8: Series of impeller	Mainly used for transporting petroleum, refined oil, liquefied petroleum gas, light hydrocarbons, boiler water supply and so on All kinds of clean or containing trace particles, flammable and explosive, toxic media. The typical working conditions are used in the hydrogenation feed pump in the heavy oil hydrogenation unit of each refinery. High pressure coke removal pump in coking and phosphorus removal unit of steel mill and high pressure boiler feed pump for power plant.	Flow rate: ~ 1000m³/h Lift: ~3500m Speed: 2950~3600r/min Design pressure: ~40MPa Operating temperature: -80ºC~450ºC

HD5F series pumps are designed according to API610 "centrifugal pumps for petroleum, heavy chemical and natural gas industries" standard double shell, symmetrical impeller arrangement horizontal multi-stage centrifugal pump, horizontal center line support. According to user requirements, the first stage impeller can be designed into single suction or double suction two structures.
The system is classified as double shell structure, and the external pressure shell is made by forging process, which has strong bearing capacity, high temperature resistance and safe and reliable operation. The inner core adopts the integral extraction design, which can realize the detection and maintenance of the pump without moving the inlet and outlet pipelines.
This series of pump hydraulic is based on the excellent hydraulic model at home and abroad, using PUMPCAD hydraulic aided design software, CFD three-dimensional fluid simulation analysis system and so on
The hydraulic design method is designed with high efficiency and good cavitation performance.
This series of pumps has the ability of axial self-balance, normal operation, the bearing does not bear the axial force, greatly improving the service life of the bearing.
Company profile We offer integrated solutions from embryo casting to complete machine with short lead time and controlled quality.
Main product
workshop

exhibition

Certification certificate
Cooperative brand
APPLICATION AREA
Coal chemical Industry,petroleum and petrochemical Industry,natural gas chemical Industry,fine chemical Industry,etc
Chemical fiber, desulfurization and denitration, etc
Thermal powerthermal power generation,biomass power generation,etc
Mining development,nonferrous metal smelting,Iron and steel metallurgyetc
Environmental protection,wastewater treatment,evaporation and concentration,MVR,etc
Ocean engineering,etc.
New energy, lithlum battery Industry, etc
PACKAGING & TRANSPORTATION
WHY CHOOSE US?
5 DECADES
Established in 1977, long history of pump making brings us rich experience, making us a professional pump manufaturer and ranking us as a famous pump factory in China.
500+ STAFFS
Well trained and professional engineers and workers guarantees the in time delivery and offers professional pump solutions to our clients.
100000m2 WORKSHOPS
Large and modernized workshops and facilities enables the efficient and strict QA&QC procedures and therefore assures the qualified products.
20+ BRANCHES
Established 20+ branches offices and subsidiaries throughout China, they offer closer and in time services to our clients. And our overseas customers are from different places of the world.
3000+ CLIENTS
Own more than 3000 clients both in China and overseas, which is an approval of our product quality and a praise of our service.
20+ PATENTS
Gained more than 20 patents, which is a strong proof of the ability of R&D and a backup of product quality.
FAQ
Q: How long is your factory history?
A: Our factory was established in 1977.
Q: How many staffs does your factory have?
A: We have around 500 staffs.
Q: What international certificates does your factory have?
A: We have API, CE, ISO9001...
Q: Does your factory have foundry for yourself?
A: We have our own foundry in our factory.
Q: What after sales service your factory can provide?
A: Generally, most of the issues can be solved by free guidance of video calls. But paid site service is also available.
Q: What is your product warranty?
A: 12 months since commissioning or 18 months after shipment,whichever is earlier.
Q: What is your factory's annual output capacity?
A: Around 20,000 pcs of various type of pumps.......

---
