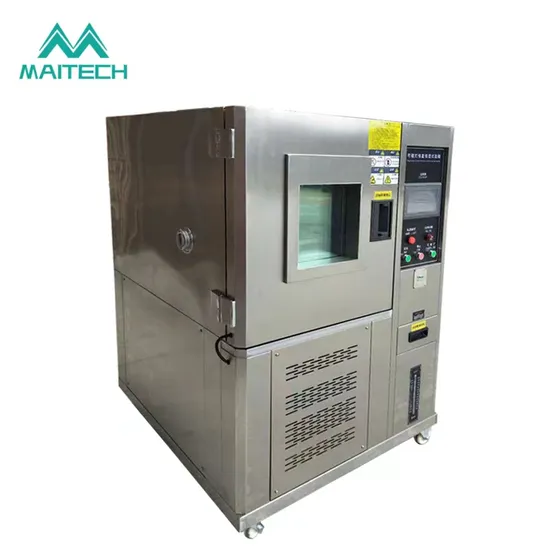

Factory Price Electronic Test Machine Simulating Environmental Chamber

Product Description

Product Description Environmental chamber
also called humidity test chamber, is useful in evaluating the performance of electronic, plastic and metal products in humid environments.High temperature and low humidity are often the root cause of product failures because they accelerate corrosion.low temperature and high humidity is a material aging test method,to evaluate the performance and durability of materials by testing them in a low temperature and high humidity environment.
Performance:
Accuracy: temperature:±0.01ºC,humidity:±0.1%RH
Temperature range: from -60,-40,-20 to 150ºC
Temperature fluctuation/uniformity: ±1ºC /±2ºC
Humidity range:20-98%RH at (25ºC-85ºC)
Heating up rate: 2ºC-4ºC/min,cooling rate:0.7ºC-1ºC/min
Structure:
Full stainless steel materials
Insulation:hard polyurethane and fiber cotton,100mm thick
Temper glass and lamp equipped in the door for observation
ψ50mm test hole on the left side
Cooling system:
1.Tecumseh compressor.
2.Efficient and energy-saving ultra-low temperature refrigeration system (air-cooled cooling method)
3.SWEP refrigerant cold and heat exchange design,R404 refrigerant
4.Automatically adjust refrigerant flow rate
5.Condenser of fin type equipped with heat sink motor
6.Evaporator of fin type with multi-stage load capacity adjustment
Control system:
English version LCD touch program controller,temperature and humidity can be programmed simultaneously, 17 segments can be adjusted, curve display, set value/measured value curve.display error alarms.
10 groups,120 segments program setting,timer 0-99hour59min
Power failure memory function, time,date setting,reservation boot, screen lock.
Safety protection:
Over-temperature protection,air burning prevention protector,compressor high voltage protection and overheat protection,
compressor over-current protection,fuse breaker

Detailed Photos
Product Parameters

Model	volume(L)	Voltage(V)	Power(W)	Inner Size (mm) (H×W×D)	External Size(mm) (H×W×D)	Temp.range (ºC)
HT-50	50	220±10%	3000	400x350x350	1420x560x860	-20~150 -40~150 -60~150 (-70~150,customized)
HT-80	80	220±10%	3500	500x400x400	1520x910x1030
HT-100	100	220±10%	3500	500x400x500	1520x1010x1030
HT-150	150	220±10%	3500	600x500x500	1620x1010x1130
HT-225	225	220±10%	4500	750x600x500	1700x1120x1100
HT-408	408	380±10%	6500	850x800x600	1860x1320x1230
HT-800	800	380±10%	8000	1000x800x1000	1920x1510x1520
HT-1000	1000	380±10%	9500	1000x1000x1000	1920x1510x1620

Packaging & Shipping
Company Profile
FAQ 1.Do you have experience in export products overseas?
Yes, we have extensive experience in exporting our products to various countries including Europe,Middle East, USA, and South America etc. We are familiar with the regulations and requirements for most of countries and can assist with any necessary papers. 2.Could you make product according to our requirements?
We offer customization options to meet specific customer needs.pls let us know your requirements and we will do best to realize it. 3.could you accept OEM or ODM service? Yes, we offer OEM services for customers who want to customize their products with their own branding and design.
4.how do you control your product quality?
We will examine and test every products including their materials, appearance and performance,there are different QC in every processes.
the third party can be also delivered to check the products.

---
